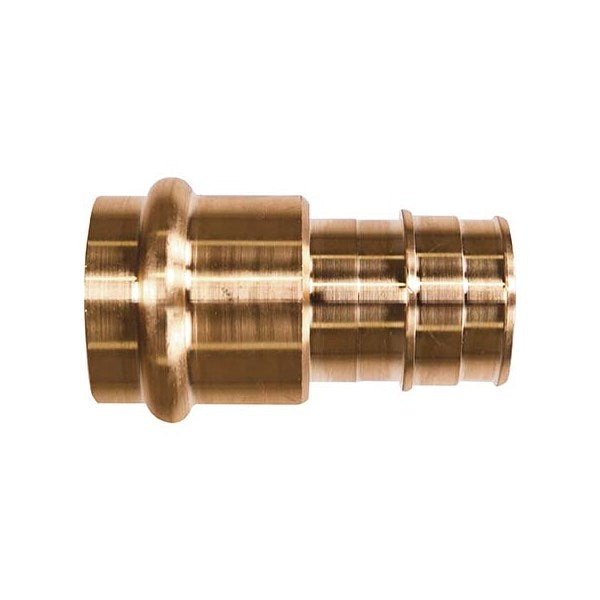

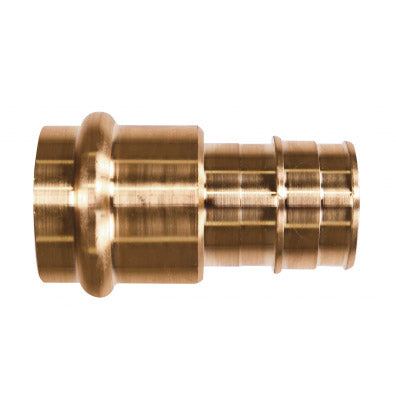

A.Y. Mcdonald 5419-379 71900exp 3/4 Adapter Press x Exp Pex

Product Description

The A.Y. MCDONALD 5419-379 is a 71900EXP 3/4 adapter that joins hard and soft copper pipe on the press end to PEX tubing on the PEX end. It is suitable for plumbing or mechanical applications. This heavy-duty, lead-free copper press fitting ensures a secure and reliable connection.

• Copper Press Fitting
• Joins Hard and Soft Copper Pipe on Press End
• Connects to PEX Tubing on PEX End

Product Highlights

Heavy-duty, lead-free copper press fitting for plumbing and mechanical applications, ensuring a secure connection between copper pipes and PEX tubing.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5419-379

Technical Specifications

• Part Type: Adapter
• Series: 71900EXP
• Inlet Connection: Press
• Outlet Connection: EXP PEX
• Inlet Connection Size: 3/4
• Outlet Connection Size: 3/4
• Material: Copper
• Product Line: Plumbing
• Product Class: 164
• Commercial Category: Fittings
• Commercial Sub Category: Press Fit
• Commercial Style: Adapters Press x F1960 PEX
• Product Type: Adapter, Press x Expansion
• Application: Plumbing / Mechanical
• Pressure Rating: Press End ; 200psi, PEX End; 100psi
• Temperature Rating: Press End; 199 Degrees F, PEX End; 180 Degrees F
• Application Standards: ASTM F1960, IAPMO PS 117, NSF/ANSI 14-20, NSF/ANSI 372, NSF/ANSI 61
