A.Y. Mcdonald 5182-082 2 in. Ball Curb Valve

Product Description

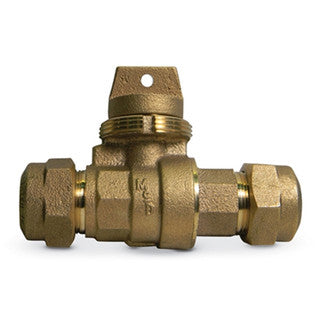

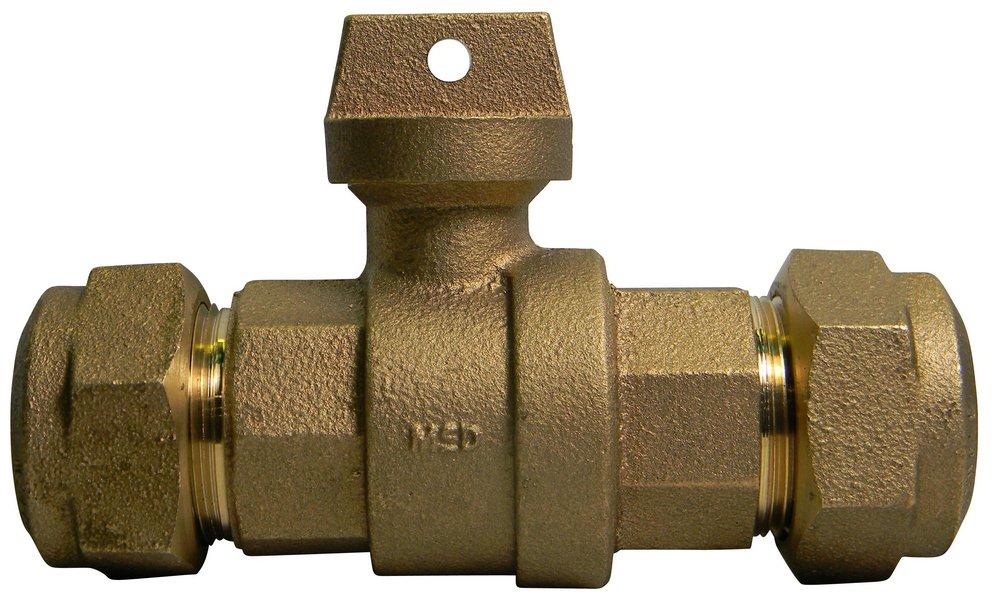

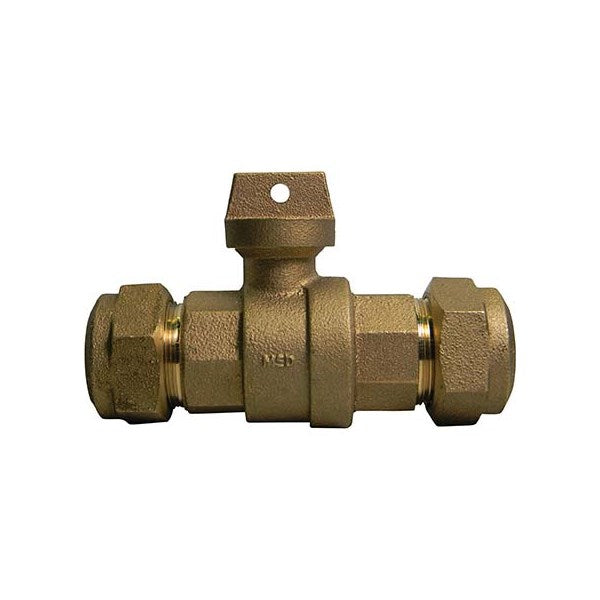

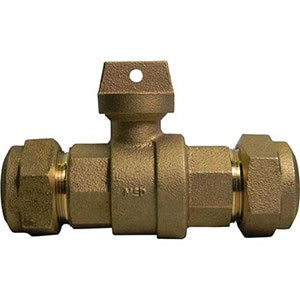

The A.Y. MCDONALD 5182-082 is a 2 in. compression brass ball curb valve with blow out proof EPDM port seals. The end piece joint is sealed with an EPDM O-ring and thread locker. It features a PTFE coated brass ball and is suitable for potable water applications. Insert stiffeners are required on all flexible plastic connections.

• Blow out proof EPDM port seals
• End piece joint sealed with an EPDM O-ring and thread locker
• PTFE coated brass ball

Product Highlights

This ball curb valve is designed for potable water and requires insert stiffeners for flexible plastic connections.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5182-082

Technical Specifications

• Part Type: Curb Stop
• Series: 76100Q
• Inlet Connection: CTS Q-Series Comp (W/Stop)
• Outlet Connection: CTS Q-Series Comp (W/Stop)
• Inlet Connection Size: 2
• Outlet Connection Size: 2
• Insert Stiff Req: Must be used on flexible plastic connections
• Ball Plug: Ball
• Handle Type: N/A
• Lockwing: No
• Material: Bronze
• Repair Part: No
• Operating Head Rotation: 90
• Valve Size: 2
• Product Line: Water Works
• Product Class: 441
• Commercial Category: Curb Stops
• Commercial Sub Category: Straight BV-COMPxCOMP
• Commercial Style: CTSxCTS
• Main Category: Underground Utility Supplies
• Brand: A.Y. Mcdonald Water Works
• Size: 2in
• Compression Fittings: Curb Valve
• General Fitting Type: Curb Valve
• Connection: CTS
• End Connection: 2in
• Sub Category: Curb Valves
• Connection Size: 2in
• Body Material: Bronze
• Model: 76100Q 2
• Part Number: 5182-082
• category: Curb Stops
• Manufacture: A.Y. McDonald
• mpn: 5182-082
• subcategory: Straight BV-FLROR COMP
• type: Curb Stop
• Inlet: 2" McQuick Tighten to Stop Compression
• Outlet: 2" McQuick Tighten to Stop Compression
