A.Y. Mcdonald 5182-064 74761q 1 Quarter Bend 5182-064

Product Description

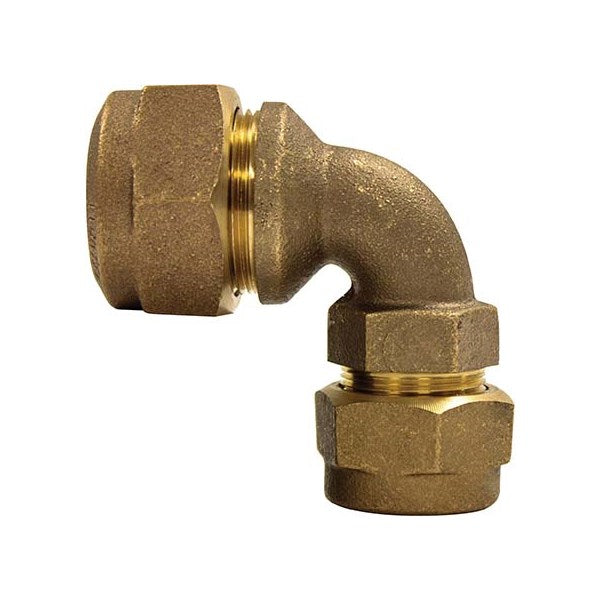

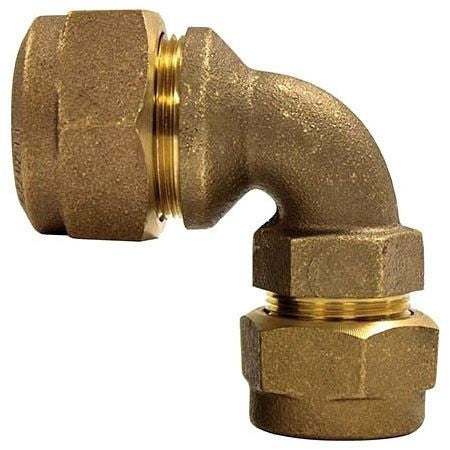

A.Y. McDonald 5182-064 service fittings are manufactured to meet or exceed the AWWA C800 standard. This 74761Q series pipe elbow features a 90-degree angle and 1-inch fitting with CTS connection. Designed and tested for cold potable water applications. EPDM rubber gaskets are used in compression fittings.

• Large wrench flats provided for proper installation
• Insert stiffeners required on all flexible plastic connections
• Manufactured to meet or exceed the AWWA C800 standard

Product Highlights

Designed for cold potable water applications, ensuring safe and reliable water service connections.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5182-064

Technical Specifications

• Part Type: Fittings
• Series: 74761Q
• Inlet Connection: CTS Q-Series Comp (W/Stop)
• Outlet Connection: CTS Q-Series Comp (W/Stop)
• Inlet Connection Size: 1
• Outlet Connection Size: 1
• Insert Stiff Req: Must be used on flexible plastic connections
• Material: BRASS
• Product Line: Water Works
• Product Class: 412
• Commercial Category: Service Fittings
• Commercial Sub Category: Quarter Bends-COMP
• Commercial Style: CTSxCTS
• Bend Type: 1/4 BEND TYPE
• Size A: 1 INCH SIZE A
• Size B: 1 INCH SIZE B
• Applicable Standard: ANSI/AWWA C800, NSF/ANSI 61/372 APPLICABLE STANDARD
• Application: COLD POTABLE WATER APPLICATION
• Material Specification: ASTM B584 MATERIAL SPECIFICATION
• End Connection: CTS COMPRESSION X CTS COMPRESSION END CONNECTION
• Angle: 90 Degrees
• Gasket Material: GASKET MATERIAL EPDM RUBBER
• Model: 74761Q MODEL
• CPS COMM CODE: WATER_SERVICE
• Type: No Lead
• Connection Type: CTS
• Standards: ANSI/AWWA C800, NSF/ANSI 61 and NSF/ANSI 372 Certified
• Item #: AYM74761QG
• MFG #: 5182-064
• End Style: CTS Compression
• Fitting / Connector Type: 90 deg Elbow
• Nominal Size: 1 in
• Manufacturer: PLBG_Comm_13757
• Manufacturer #: 5182-064
• Softgoods Material: EPDM
• Domestic / Import: Domestic
