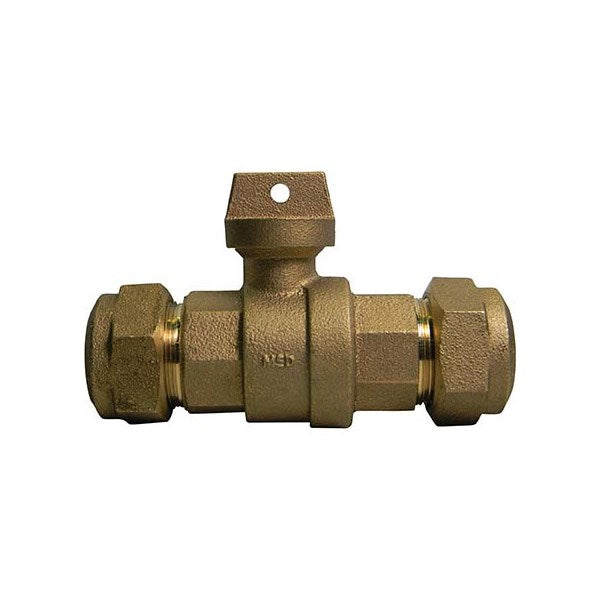

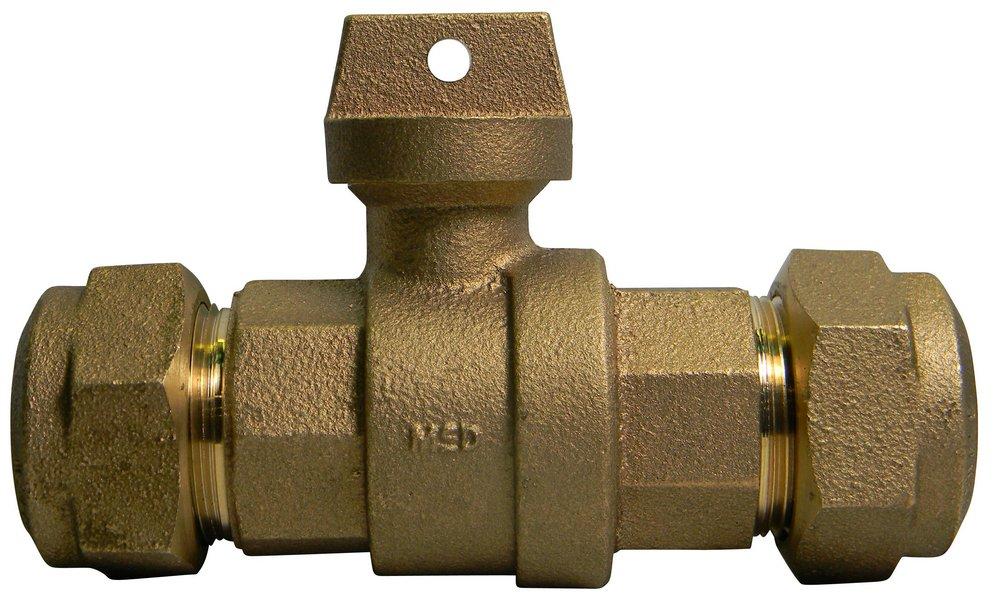

A.Y. Mcdonald 5182-052 Ball Curb Stop 1 in

Product Description

The A.Y. MCDONALD 5182-052 is a 1-inch ball curb stop with CTS connections. It is designed for potable water applications and features a PTFE-coated brass ball supported by two blow-out proof EPDM seals. Insert stiffeners are required on all flexible plastic connections. This ball curb stop offers positive shut-off from either direction.

• Curb Stop
• CTS Q-Series Comp (W/Stop) Inlet and Outlet Connection
• Must be used on flexible plastic connections

Product Highlights

Ensures reliable shut-off with durable construction and EPDM seals.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5182-052
• Country of Origin: Unknown

Technical Specifications

• Part Type: Curb Stop
• Series: 76100Q Series
• Inlet Connection: CTS Q-Series Comp (W/Stop)
• Outlet Connection: CTS Q-Series Comp (W/Stop)
• Inlet Connection Size: 1
• Outlet Connection Size: 1
• Insert Stiff Req: Must be used on flexible plastic connections
• Ball Plug: Ball
• Handle Type: N/A
• Lockwing: No
• Material: NL Brass
• Repair Part: No
• Operating Head Rotation: 90
• Valve Size: 1
• Product Line: Water Works
• Product Class: 441
• Commercial Category: Curb Stops
• Commercial Sub Category: Straight BV-COMPxCOMP
• Commercial Style: CTSxCTS
• Brand: A.Y. McDonald
• MPN: 5182-052
• Diameter: 1 in
• UPC: 053565346496
• Housing Material: N/A
• Condition: New
• Country of Origin: Unknown
• Fitting Type: Water Supply Stops
• Connection Size: 1" x 1"
• Connection Type: Comp x Comp
• Body Material: Brass
• Finish: PTFE-Coated
• Material Standard: ASTM B584, ASTM B62, UNS C89833
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 300 psig
• Softgoods Material: EPDM
• End Style: Q CTS Compression
• Manufacturer Name: A.Y. McDonald
• Media: Water
• Brand Name: A.Y. McDonald Mfg. Co.
• Mfg Part#: 5182-052
• CPS SKU: 109949
• Applicable Standard: ANSI/AWWA C800, NSF/ANSI 61/372
• Application: POTABLE WATER
• Inclusions/Features: EPDM O-RING AND THREAD LOCKER
• End Connection: CTS COMPRESSION X CTS COMPRESSION
• Handle Material: BRASS
• End to End Distance: 4.49 INCH
• Seat Material: PTFE
• Lead-Free: LEAD-FREE
• Model: 76100Q
