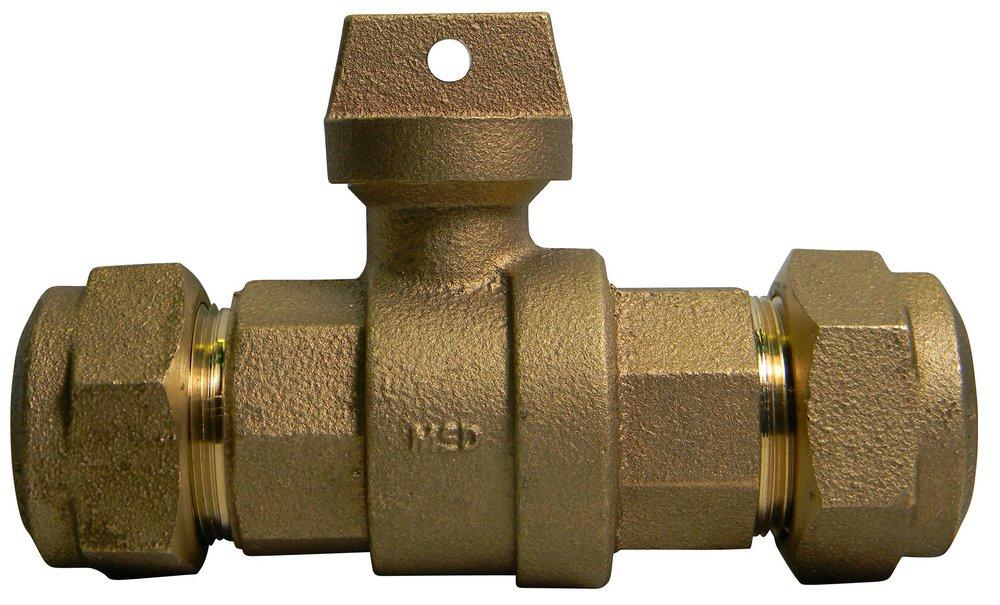

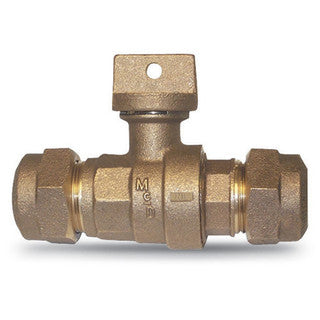

A.Y. Mcdonald 5182-031 Curb Stop Ball Valve 3/4 in

Product Description

The A.Y. MCDONALD 5182-031 curb stop ball valve features blow-out proof EPDM port seals and an end piece joint sealed with an EPDM O-ring and thread locker. It has a PTFE coated brass ball and is suitable for potable water applications. Insert stiffeners are required on all flexible plastic connections.

• Blow out proof EPDM port seals
• End piece joint sealed with an EPDM O-ring and thread locker
• PTFE coated brass ball

Product Highlights

This 3/4 inch brass ball valve is designed for water media with a pressure rating of 300 psig. It features compression connections and lead-free construction.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5182-031

Technical Specifications

• Ball Material: Brass
• Body Material: Brass
• Connection Type: Compression
• Lead-Free/Contains Lead: Lead-Free
• Material Standard: ASTM B584 C89833
• Media: Water
• Nominal Size: 3/4 in
• Opening Size: 3/4 in
• Pressure Rating: 300 psig
• Seal Material: EPDM
• Top to Inlet Center: 2.44 in
• End Style: Q CTS Compression
• Inlet: 3/4" McQuick Tighten to Stop Compression
• Outlet: 3/4" McQuick Tighten to Stop Compression
