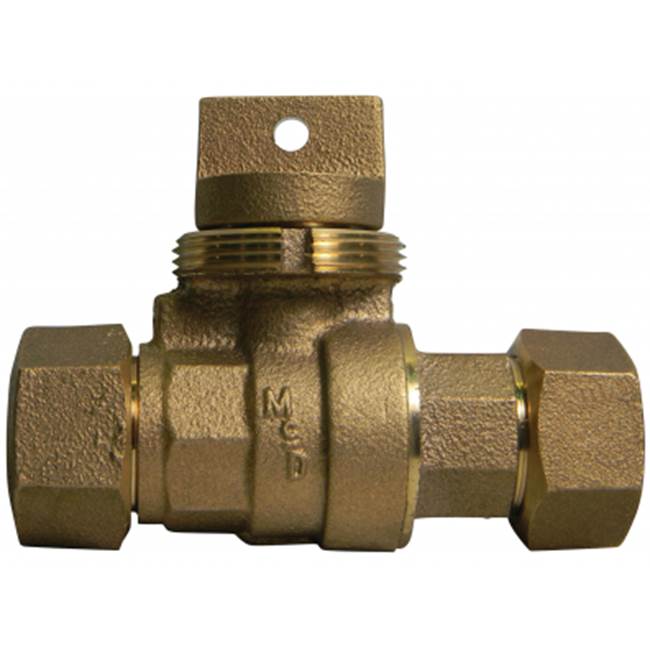

A Y McDonald 5142-405 76104T 1 1/4 MINN BALL CURB - CTS X CTS - NL

Product Description

A Y McDonald offers the 5142-405 Ball Curb Stop, featuring a Minneapolis pattern designed for a nominal size of one and one-fourth inches. This product is made for T CTS compression applications and is rated for a pressure of three hundred psi. It primarily handles water media. The curb includes a PTFE coated brass ball and measures two point ninety-four inches from the top to the inlet center.

• PTFE coated brass ball
• EPDM port seal trim
• Meets multiple industry standards

Product Highlights

The 5142-405 is suitable for various plumbing applications, ensuring reliable performance in potable water systems.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• UPC: 053565700601

Technical Specifications

• Ball Material: PTFE Coated Brass
• Body Material: Brass
• End Style: T CTS Compression
• Media: Water
• Nominal Size: 1-1/4 in
• Pressure Rating: 300 psi
• Series: 76104T
• Softgoods Material: EPDM
• Top to Inlet Center: 2.94 in
• Trim Material: EPDM Port Seal
• Type: Minneapolis Pattern
