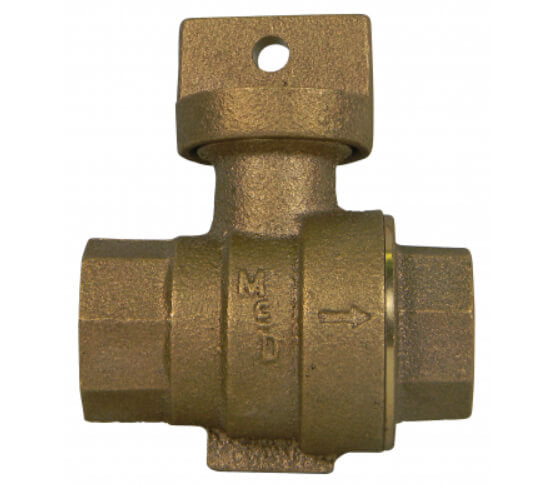

A Y McDonald 5142-334 76001 1 1/4 STP&DRAIN BALL CURB FNPTxFNPT-NL

Product Description

A.Y. McDonald presents the 5142-334 curb stop ball valve, designed for plumbing applications. This 1-1/4 inch curb stop features FNPT connections and operates at a maximum water pressure of 150 psi. The valve body is made from brass, ensuring durability and long-term use. It is intended for water service and includes features that enhance its performance and reliability.

• Brass body construction
• 150 psi pressure rating
• Blow-out proof EPDM port seals

Product Highlights

This product is suitable for various plumbing applications where reliable water flow control is needed.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• Part Number: 5142-334

Technical Specifications

• Ball Material: Brass
• Body Material: Brass
• End Style: FNPT
• Inlet to Outlet Length: 4.94 inches
• Media: Water
• Nominal Size: 1-1/4 inches
• Pressure Rating: 150 psi
• Series: 76001
• Softgoods Material: EPDM
• Top to Inlet Center: 2.94 inches
• Trim Material: EPDM Port Seal
