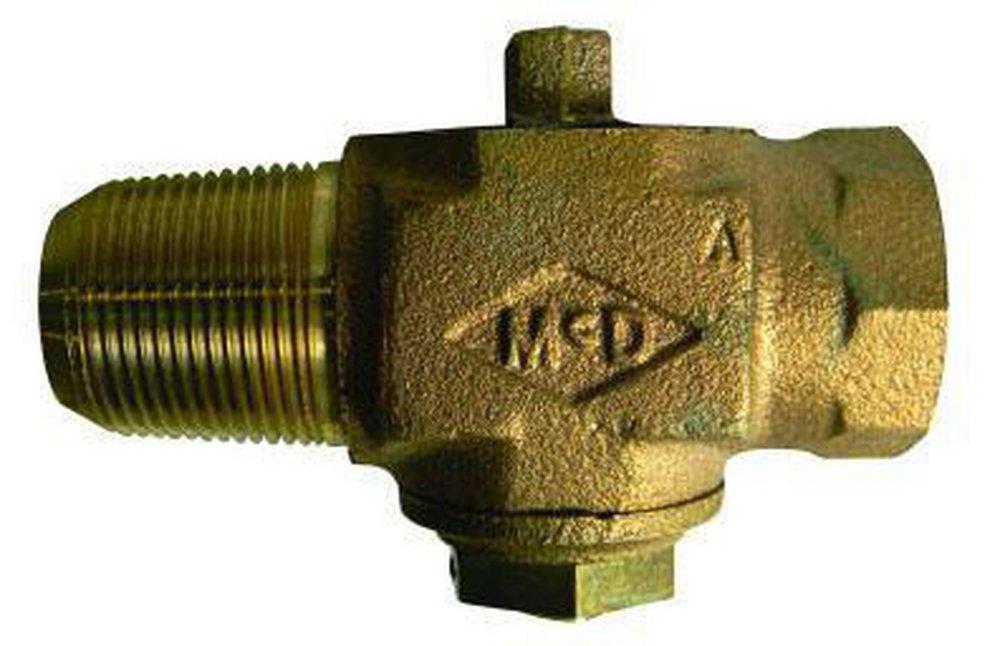

A.Y. McDonald 5139-024 3/4 in. CC x FIP Ball Corporation Stopeel Optik

Product Description

The A.Y. McDonald 3/4 in. CC x FIP Ball Corporation Stopeel Optik, with MPN 5139-024, is designed for reliable water control in plumbing applications. This product features a brass body that meets industry standards for potable water use. The EPDM seals ensure durability and leak prevention.

• Blow-out proof EPDM port seal
• Brass components conform to ASTM standards
• Pressure rated for up to 300 psig

Product Highlights

The valve allows for 360-degree rotation, allowing flexible installation in tight spaces.

Product Information

Standard Information

• Brand: A.Y. McDonald
• MPN: 5139-024

Technical Specifications

• Ball Material: Brass
• Body Material: Brass
• End Style: AWWA/CC x FNPT
• Inlet to Outlet Length: 3.46 inches
• Media: Water
• Nominal Size: 3/4 inches
• Orifice Size: 3/4 inches
• Pressure Rating: 300 psig
• Series: 73148B
• Softgoods Material: EPDM Seal/O-Ring
• Top to Inlet Center: 1.39 inches
• Manufacturer: A.Y. McDonald MFG CO
