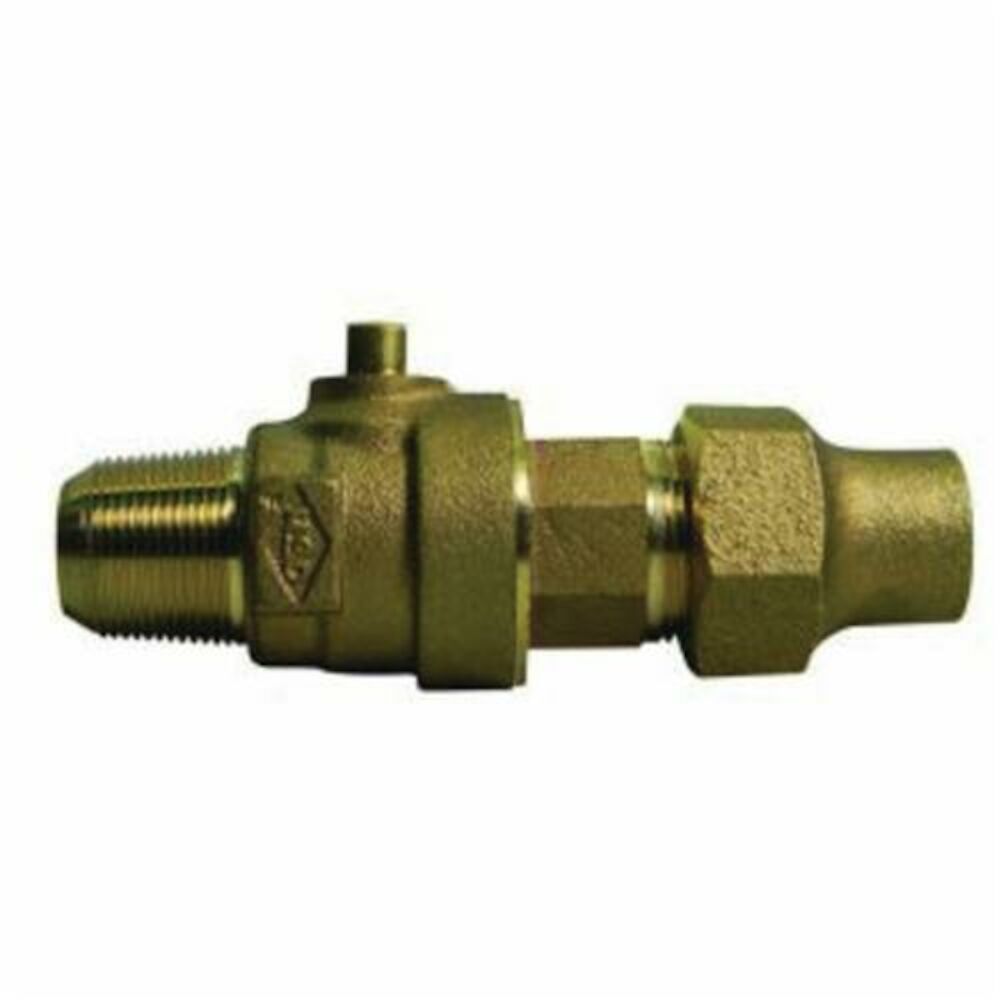

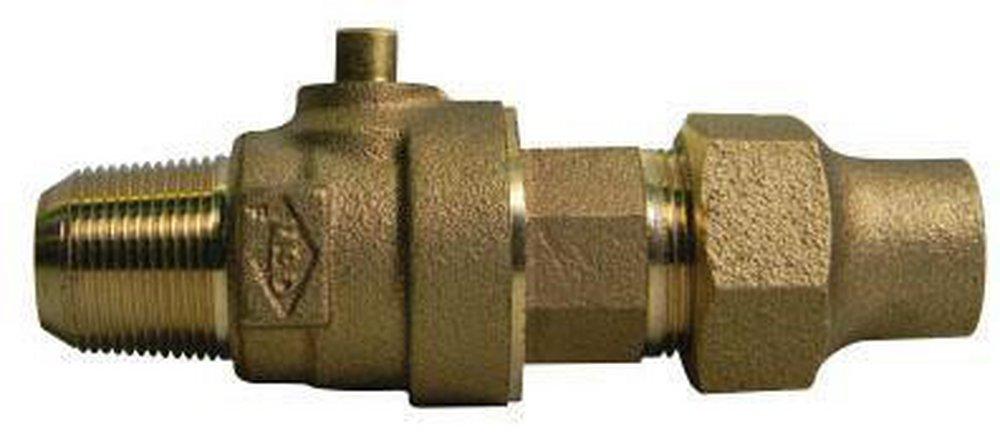

A.Y. Mcdonald 5133-116 Ball Corporation Stop 3/4 in. AWWA x Flare

Product Description

The A.Y. MCDONALD 5133-116 Ball Corporation Stop features a 360-degree operating head designed for low turning torques and high pressures up to 300 PSI. The PTFE-coated brass ball is supported by blow-out proof EPDM seals. The end piece joint is sealed with an EPDM O-ring and thread locker. Suitable for potable water applications.

• Blow out proof EPDM port Seals
• End piece joint sealed with an EPDM O-ring and thread locker
• PTFE coated brass ball rotates 360 degree

Product Highlights

Designed for low turning torques and high pressures, this ball valve features EPDM seals and a PTFE-coated brass ball for durability and performance.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5133-116
• Country of Origin: United States of America

Technical Specifications

• Body Material: BRASS
• End Style: AWWA / CC Tapered Thread x C Flare
• Nominal Size: 3/4 x 3/4 in
• Port Type: Full
• Softgoods Material: EPDM
• Ball Material: BRASS
• Inlet to Outlet Length: 4.65
• Manufacturer: A.Y. McDonald
• Manufacturer #: 5133-116
• Media: Water
• Pressure Rating: 300 psi
• Top to Inlet Center: 1.39
• Brand: A.Y. Mcdonald
• MPN: 5133-116
• Standards: ANSI/AWWA C800, Certified to NSF/ANSI 61 and NSF/ANSI 372
• Product Type: Plumbing Part
• Connection Type: AWWA x Flared
