A.Y. McDonald 5132-130 3/4 x 5/8 x 3/4 Curb Stop Ball Valve Replacement MPN

Product Description

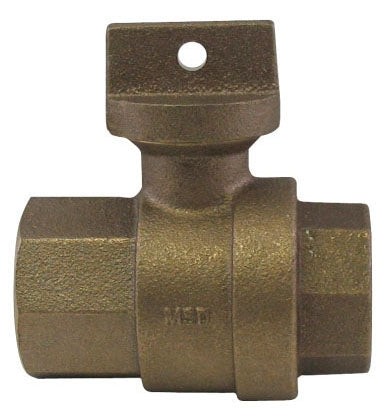

A.Y. McDonald 5132-130 is a curb stop ball valve designed for use in potable water applications. The valve has a nominal size of three-fourth by five-eighth by three-fourth inches with female threaded connections on both ends. It operates under a maximum pressure rating of three hundred PSI. The body of the valve is made from lead-free brass to ensure water safety.

• End connections: Female threaded x female threaded
• Inlet to outlet distance: 2.81 inches
• Includes PTFE coated ball and blow-out proof EPDM seals

Product Highlights

This valve is suitable for various water service applications, providing a reliable seal while maintaining low turning torque.

Product Information

Standard Information

• UPC: 053565509075
• Manufacturer: A.Y. McDonald

Technical Specifications

• Material: ASTM B584 UNS C89833 Lead-Free Brass
• Pressure Rating: 300 PSI
• Nominal Size: 3/4 Inch x 5/8 Inch x 3/4 Inch
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 2.81 Inches
• Application: Potable Water
• Applicable Standards: ANSI/AWWA C800, ANSI/NSF 61/372
