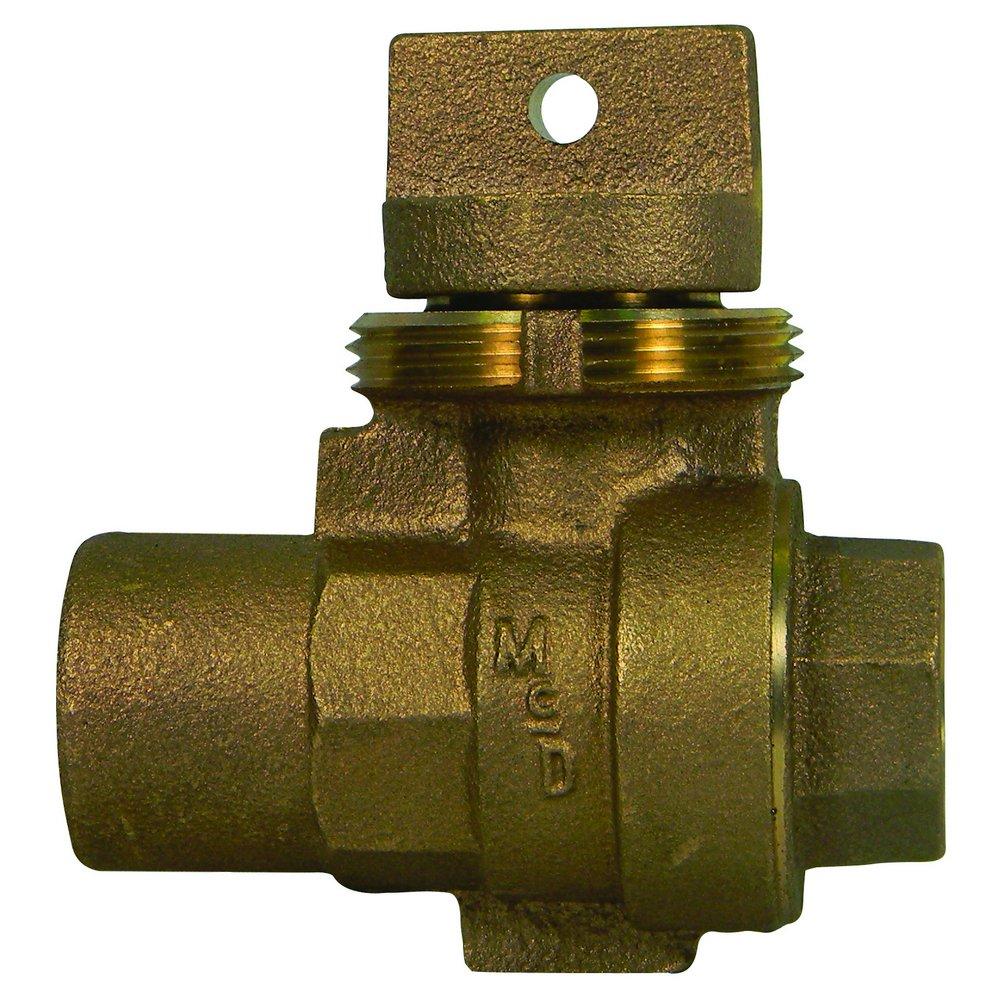

A.Y. McDonald 5131-278 Curb Stop Ball 1In FNPT BRS EPDM O-RING

Product Description

A.Y. McDonald 5131-278 is a curb stop ball valve designed for water service applications. This product features a nominal size of one inch and a FNPT connection. It is suitable for use in scenarios requiring a reliable shut-off and drain feature. The brass body and EPDM O-ring ensure durability and effectiveness in maintaining pressure integrity.

• Minneapolis pattern design
• Rated for 150 psi water pressure
• Easy to install and operate

Product Highlights

This curb stop valve offers a low turning torque and a bubble-tight rating, making it ideal for plumbing professionals. The PTFE coated brass ball and blow-out proof EPDM seals enhance the reliability of this valve for everyday use.

Product Information

Standard Information

• Brand: A.Y. McDonald
• Type: Minneapolis Pattern

Technical Specifications

• Nominal Size: 1 in
• Media: Water
• Pressure Rating: 150 psi
• Ball Material: Brass
• Body Material: Brass
• Trim Material: EPDM Seal
• Inlet to Outlet Length: 3.66 in
• Top to Inlet Center: 2.65 in
