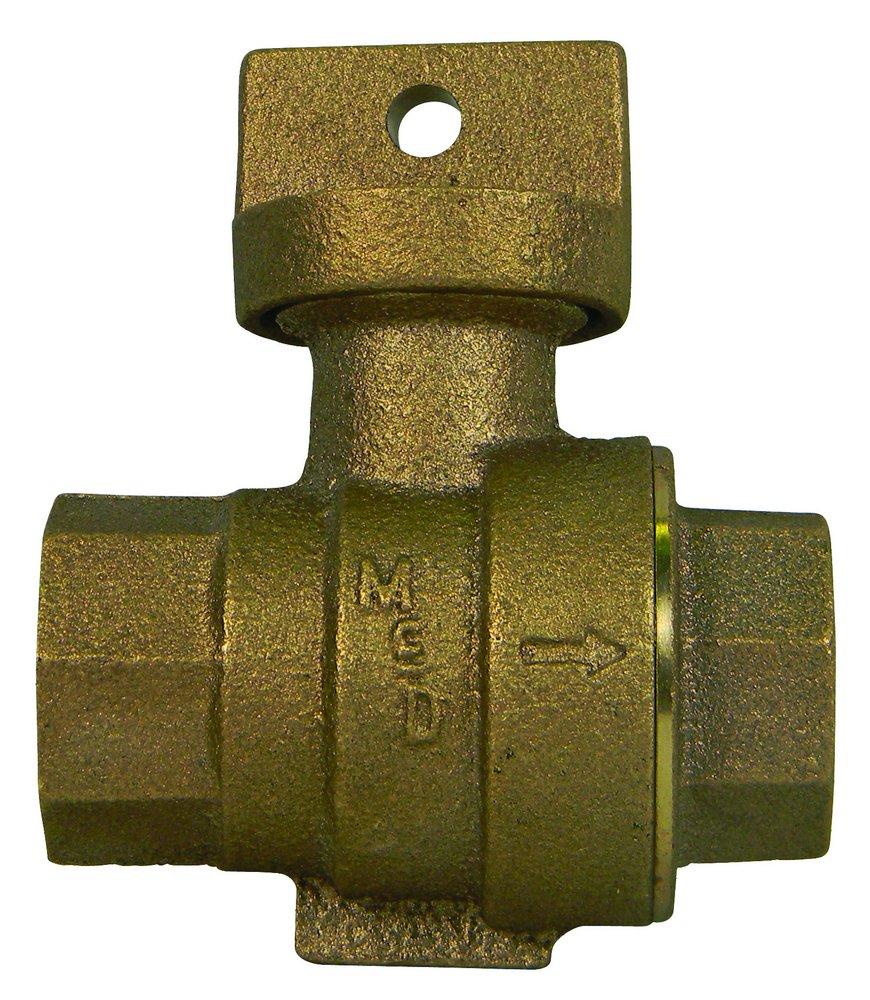

A.Y. McDonald 5131-269 1 in. FIP Stop and Drain Ball Valve M76001G

Product Description

The A.Y. McDonald 5131-269 is a one-inch FNPT stop and drain ball valve designed for water service applications. It supports a maximum pressure rating of one hundred fifty psi and incorporates a brass ball with PTFE coating for reliable performance.

• Equipped with blow-out proof EPDM port seals.
• Engineered with an EPDM O-ring and thread locker for secure joint sealing.
• Rated for reliable automatic drainage from the outlet when closed.

Product Highlights

This stop and drain ball valve features a low turning torque and is easy to operate. The maintenance of water flow integrity is ensured due to its sturdy construction and quality materials.

Product Information

Standard Information

• Brand: A.Y. McDonald
• MPN: 5131-269
• Product Type: Curb Stop
• Nominal Size: 1 in

Technical Specifications

• Pressure Rating: 150 psi
• Media: Water
• Ball Material: Brass
• Body Material: Brass
• Softgoods Material: EPDM
• Inlet to Outlet Length: 3.65 inches
• Top to Inlet Center: 2.42 inches
• Series: 76001
• End Style: FNPT
