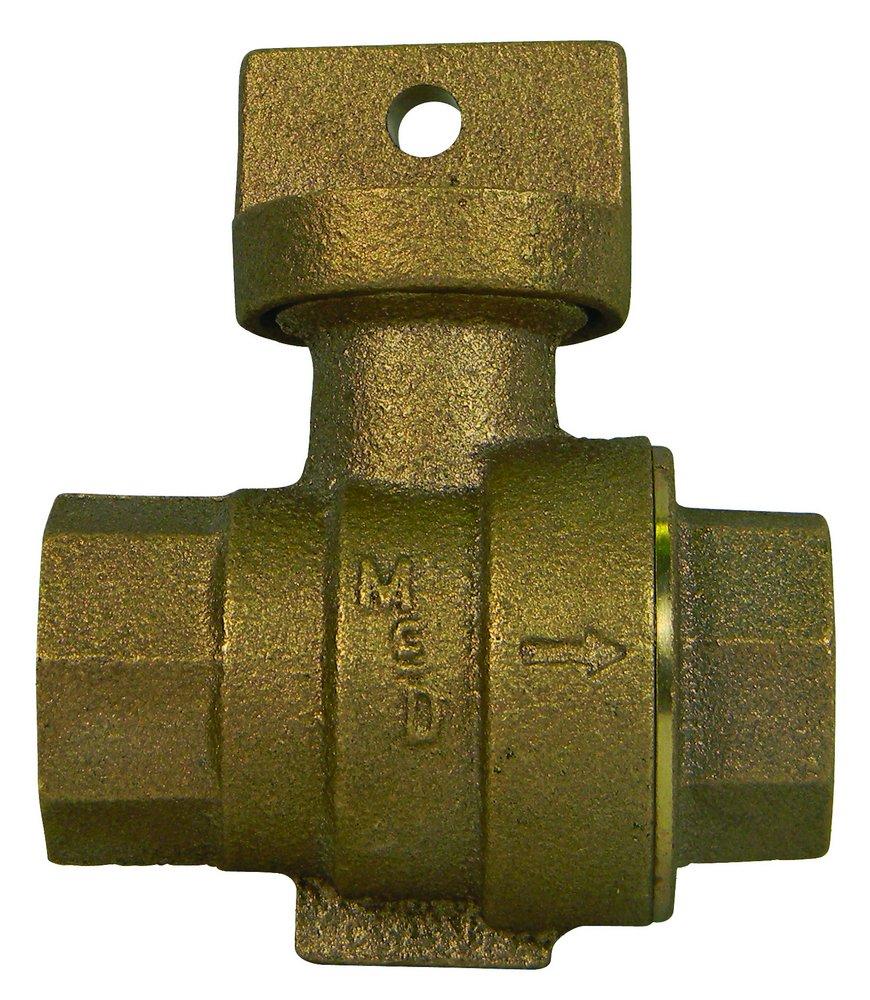

A.Y. McDonald 5131-250 3/4 in. FIP Stop and Drain Ball Valve M76001F

Product Description

The A.Y. McDonald 5131-250 is a 3/4 inch FIP stop and drain ball valve designed for water service applications. This ball valve is constructed to handle a pressure rating of 150 psig and includes features that ensure durability and reliability.

• Blow-out proof EPDM port seals
• Directional flow for effective draining
• PTFE coated brass ball for improved performance

Product Highlights

This stop and drain ball valve is essential for plumbing installations where control of water flow is critical. It allows for safe service and maintenance while minimizing leaks and water loss.

Product Information

Standard Information

• Brand: A.Y. McDonald
• MPN: 5131-250

Technical Specifications

• Ball Material: PTFE Coated Brass
• Dimensions: 3/4 inch Diameter
• End Style: FNPT
• Inlet to Outlet Length: 3.51 inches
• Media: Water
• Nominal Size: 3/4 inch
• Pressure Rating: 150 psig
• Softgoods Material: EPDM
• Top to Inlet Center: 2.42 inches
