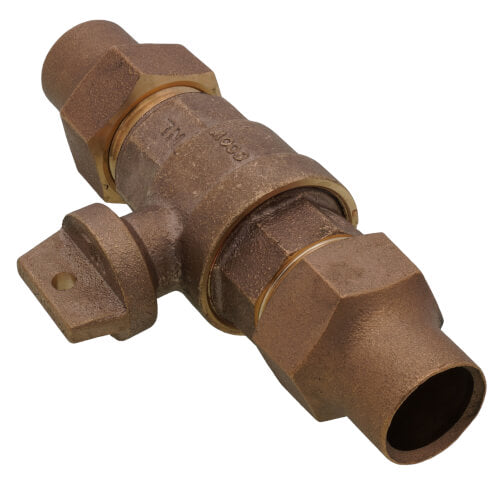

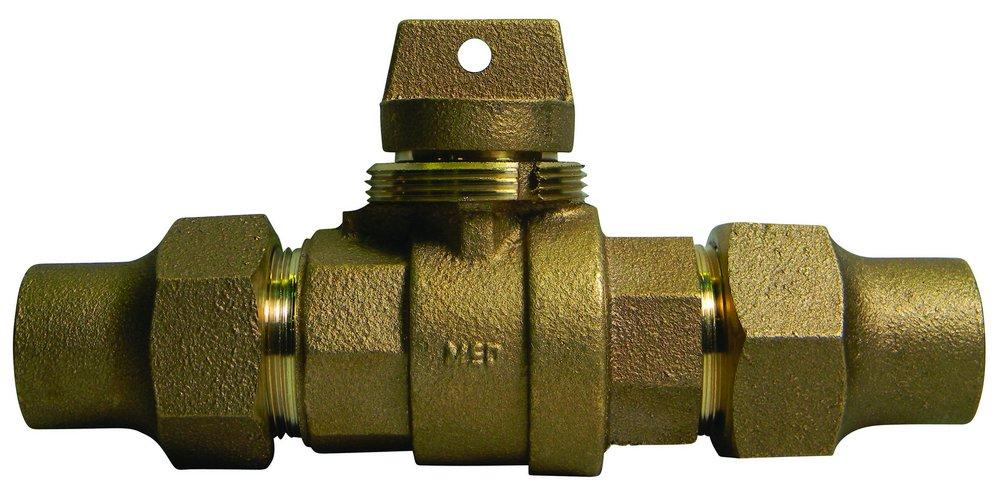

A.Y. McDonald 5131-126 76104 1 in. Copper Flared Ball Brass Minn Style Curb Stop M76104G

Product Description

A.Y. McDonald 5131-126 is a 1 inch Copper Flared Ball Brass Minn Style Curb Stop. This product is ideal for controlling water flow in plumbing applications. It features a PTFE coated brass ball that ensures a low turning torque and a bubble-tight seal at a pressure rating of 300 PSIG. The body is designed for durability and reliability in various water service applications.

• Brass components meet ASTM B584 and NSF/ANSI standards.
• Provides a positive shut-off in either direction.
• Includes blow-out proof EPDM seals for enhanced performance.

Product Highlights

This curb stop is suited for potable water and is compliant with industry standards.

Product Information

Standard Information

• Item No: 4427865
• Brand: A.Y. McDonald

Technical Specifications

• Ball Material: PTFE Coated Brass
• Body Material: Brass
• End Style: C Flare
• Nominal Size: 1 in
• Pressure Rating: 300 PSIG
• Series: 76104
• Softgoods Material: EPDM
• Top to Inlet Center: 2.65 in
• Type: Minneapolis Pattern
