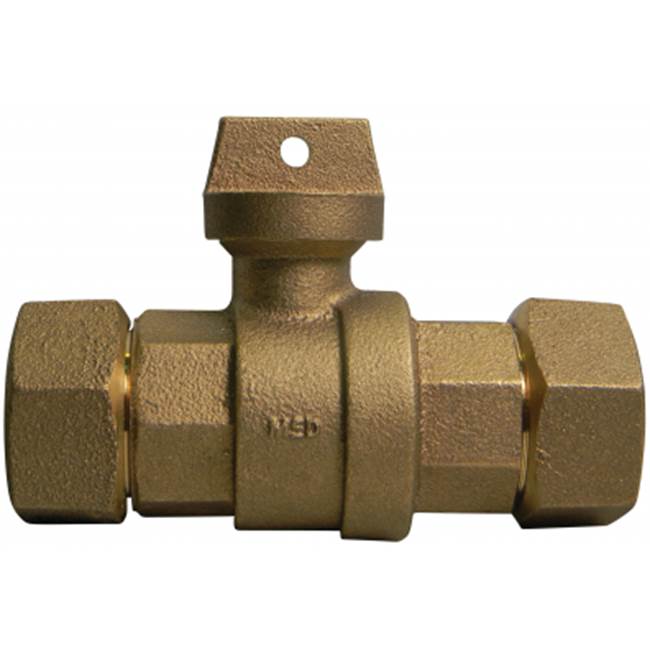

A Y McDonald 5131-107 76100T 1 1/2 Ball Curb CTS X CTS - NL

Product Description

The A Y McDonald 5131-107 is a 1-1/2 inch ball curb stop designed for use in plumbing systems. It features CTS compression connections and is rated for up to 300 psi. This ball curb is made of durable brass and is suitable for water applications. Additionally, it employs EPDM for its port sealing and soft goods.

• Constructed from brass for reliability.
• EPDM materials enhance sealing performance.
• PTFE coated brass ball reduces friction and wear.

Product Highlights

This ball curb is ideal for plumbing projects, ensuring strong and reliable connections. It is well-suited for both residential and commercial installations.

Product Information

Standard Information

• Brand: A Y McDonald MFG CO
• Product Name: 76100T 1 1/2 Ball Curb CTS X CTS - NL

Technical Specifications

• Ball Material: Brass
• Body Material: Brass
• Dimensions: 1-1/2 inches Diameter
• End Style: T CTS Compression
• Media: Water
• Nominal Size: 1-1/2 inches
• Pressure Rating: 300 psi
• Softgoods Material: EPDM
• Top to Inlet Center: 3.4 inches
• Trim Material: EPDM Port Seal
