A.Y. McDonald 5131-083 7610FKIT Meter Flange Kit 1-1/2 (2 Flange x FNPT)

Product Description

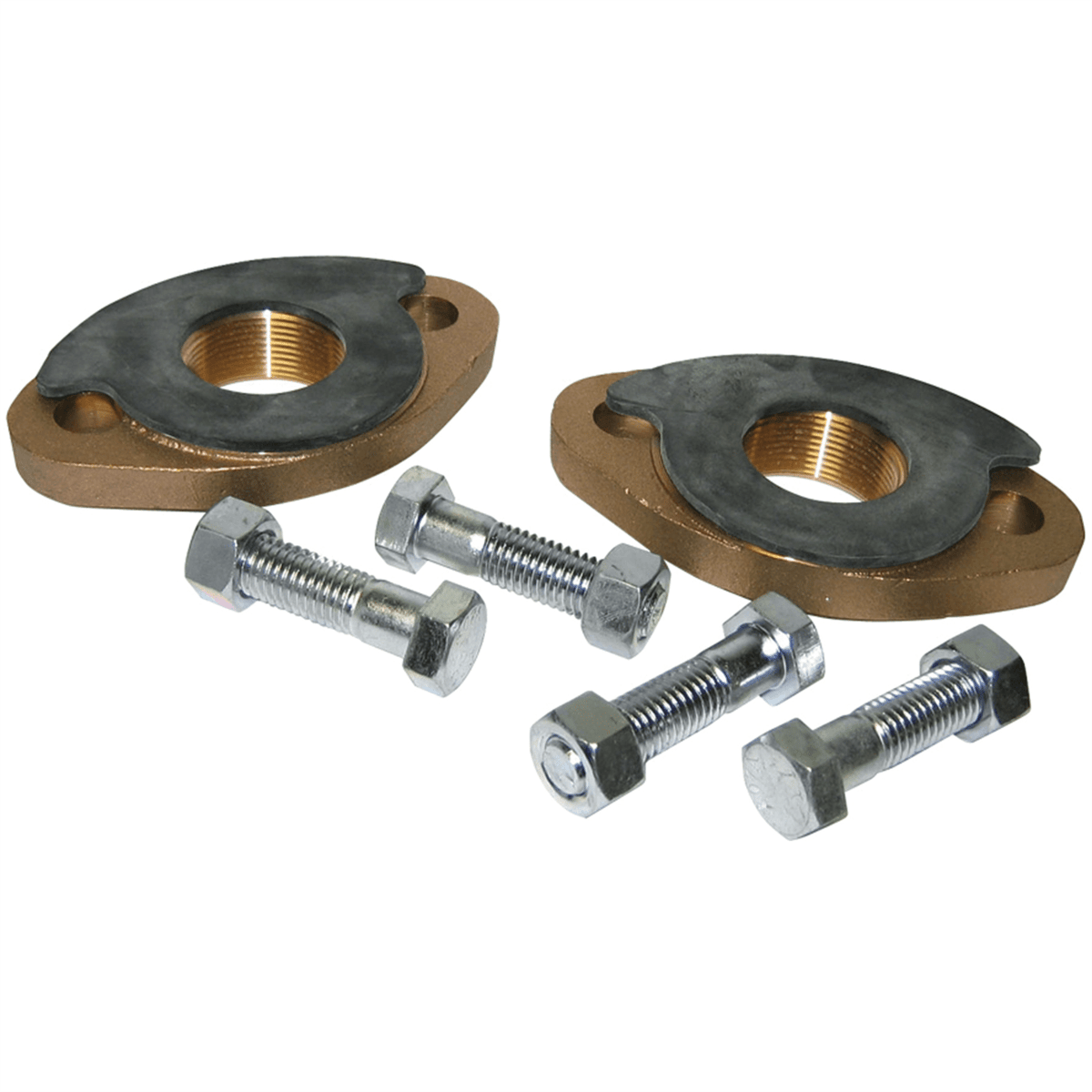

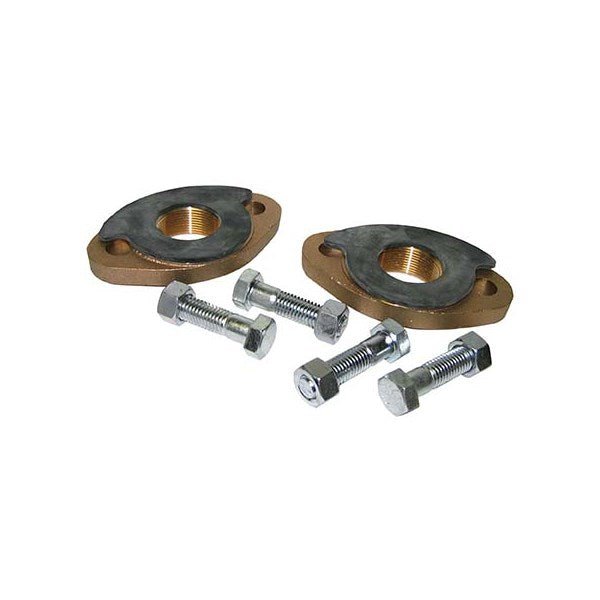

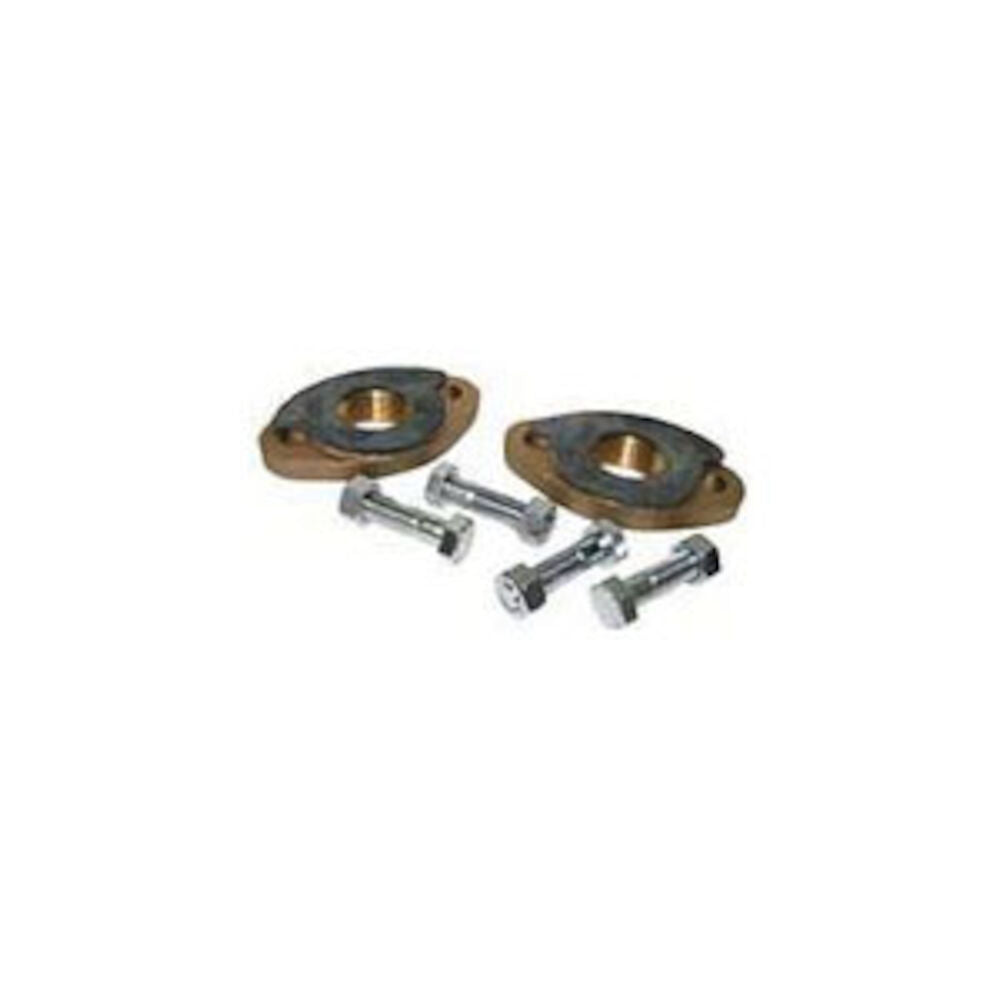

A.Y. McDonald 5131-083 is the 7610FKIT meter flange kit for 1-1/2 inch meters, providing an oval flange inlet to a 1-1/2 inch female NPT outlet in NL brass. The kit includes two flanges, EPDM gaskets, bolts and nuts and is intended for potable water meter installations. It provides a large wrench area for installation and requires insert stiffeners on flexible plastic connections.

• 1-1/2 in meter flange kit with oval flange inlet to 1-1/2 in FNPT outlet; commercial 1-1/2 x FNPT style
• NL brass construction with standard EPDM gaskets; kit includes (2) flanges, (2) gaskets, (4) 5/8 in bolts and (4) 2-1/2 in nuts
• Designed for potable water; meets AWWA C700 and NSF/ANSI 61/372 where applicable; bolt hole diameter 0.72 in

Product Highlights

Meter flange kit for 1-1/2 in meters; NL brass construction; includes flanges, EPDM gaskets, bolts and nuts; oval flange x FNPT end style.

Product Information

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 5131-083
• Country of Origin: United States

Technical Specifications

• Brand: A.Y. McDonald
• Manufacturer Part Number: 5131-083
• Series: 7610FKIT
• Product Name: 7610FKIT Meter Flange Kit
• Meter Size: 1-1/2 in
• Nominal Pipe Size: 1-1/2 in
• Material: NL brass (no-lead brass)
• End Style: Oval Flange x FNPT
• Inlet Connection: Flange
• Outlet Connection: Female NPT (FNPT)
• Inlet Connection Size: 1-1/2 in
• Outlet Connection Size: 1-1/2 in
• Dimensions: 3.44 in L
• Weight: 5.5 lb
• Kit Contents: (2) flanges, (2) EPDM gaskets, (4) 5/8 in bolts, (4) 2-1/2 in nuts
• Bolt Hole Diameter: 0.72 in
• Insert Stiffener Requirement: Insert stiffeners required on flexible plastic connections
• Application: Potable water
• Certifications: Meets AWWA C700 and NSF/ANSI 61/372 (where applicable)
• Product Line: Water Works
