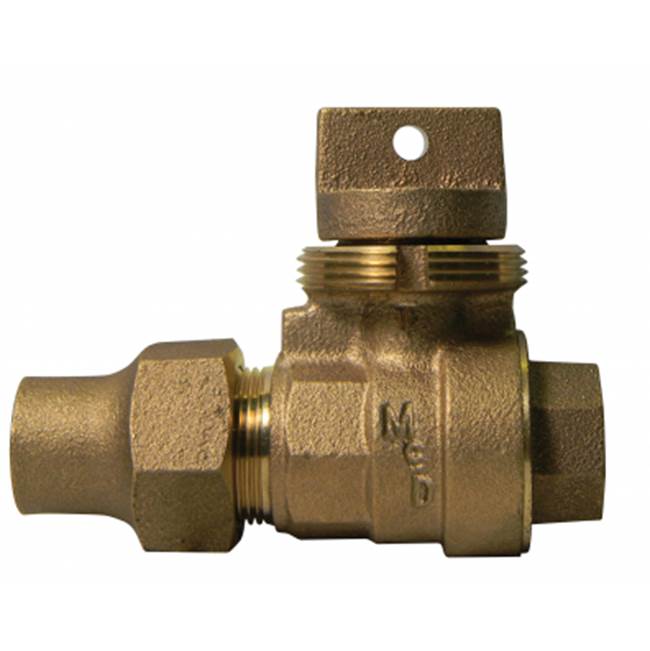

A Y McDonald 5129-194 76106 1 Minn Ball Curb Flare X FNPT - NL

Product Description

A.Y. McDonald 5129-194 features a ball-style curb stop with a Minneapolis pattern. This unit has a nominal size of one inch and connects with flare x FNPT ends. It has a pressure rating of three hundred psig and includes a PTFE coated brass ball. The top to inlet center distance measures two point six five inches.

• Brass components meet ASTM B584 and UNS C89833 standards.
• Blow-out proof EPDM port seals enhance durability.
• End joint sealed with EPDM O-Ring and thread locker.

Product Highlights

This curb stop meets standards for use with potable water. It ensures reliable sealing through its EPDM O-rings and port seals.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• Series: 76106

Technical Specifications

• Ball Material: PTFE Coated Brass
• Body Material: Brass
• End Style: Flare x FNPT
• Nominal Size: 1 in
• Pressure Rating: 300 psig
• Softgoods Material: EPDM
• Top to Inlet Center: 2.65 in
• Type: Minneapolis Pattern
