A Y MCDONALD 5129-189 76104T 3/4 MINN BALL CURB CTS X CTS - NL

Product Description

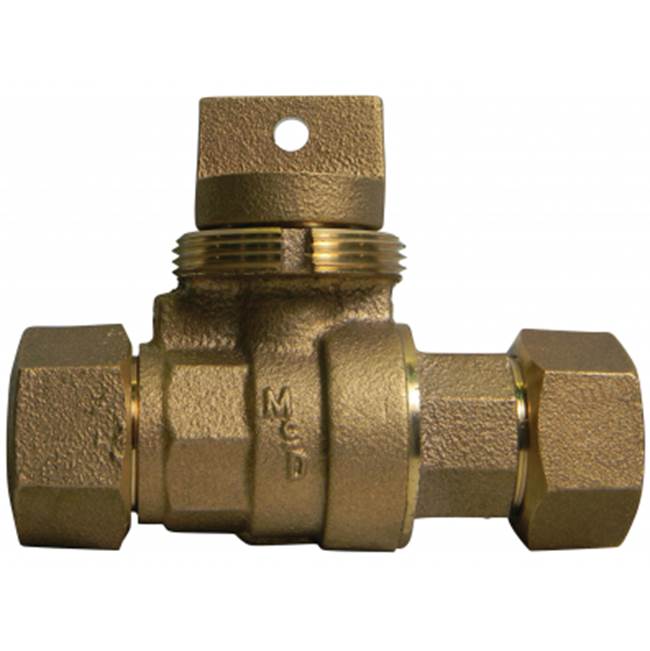

A.Y. McDonald MFG CO 5129-189 is a Minneapolis Pattern ball curb stop. This product features a nominal size of three-fourths of an inch and uses T CTS compression. It is designed to handle water media at a maximum pressure of three hundred psi. The ball is made from PTFE coated brass while the body is brass. The assembly includes EPDM port seal trim and softgoods for reliable operation.

• Nominal size: 3/4 inches
• Media: Water
• Pressure rating: 300 psi

Product Highlights

This ball curb stop is built to last and holds up under various conditions. It is suitable for plumbing applications in potable water systems.

Product Information

Standard Information

• Manufacturer: A Y MCDONALD MFG CO
• Series: 76104T

Technical Specifications

• Ball Material: PTFE Coated Brass
• Body Material: Brass
• End Style: T CTS Compression
• Media: Water
• Nominal Size: 3/4 inches
• Pressure Rating: 300 psi
• Softgoods Material: EPDM
• Top to Inlet Center: 2.72 inches
• Trim Material: EPDM Port Seal
