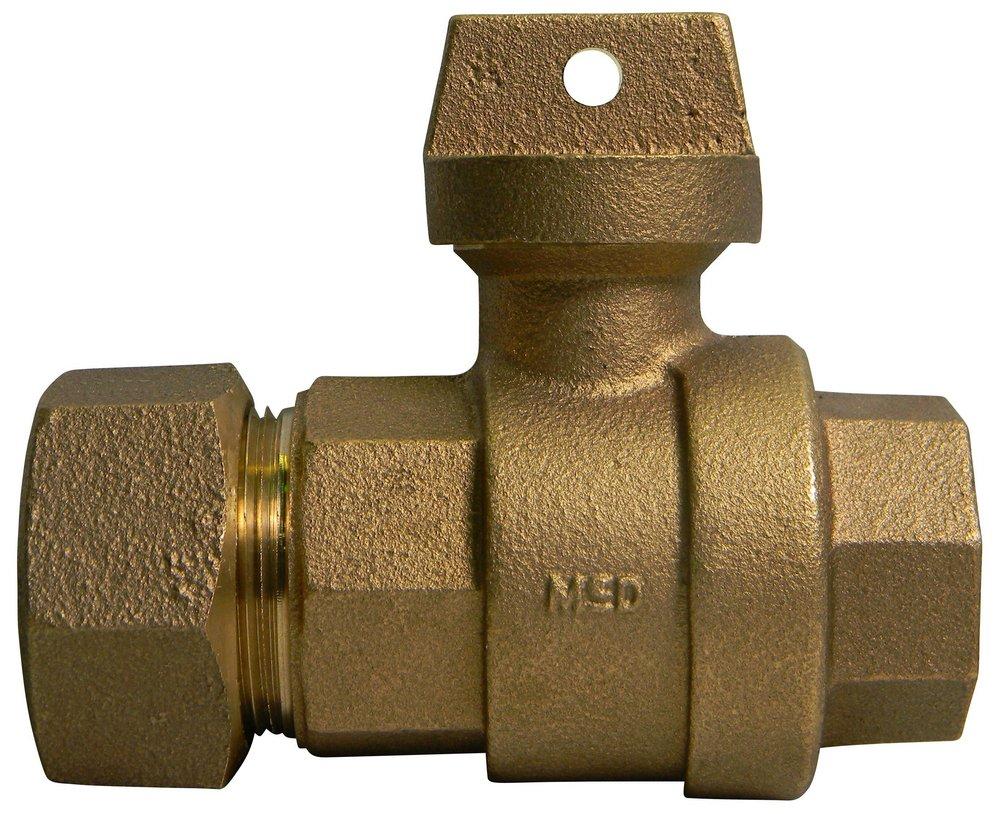

A.Y. McDonald 5129-183 76102T 3/4 in. CTS Compression x FIP Brass Ball Valve Curb Stop

Product Description

The A.Y. McDonald 5129-183 is a 3/4 inch CTS compression x FIP brass ball valve curb stop. This valve is designed for use in water services and meets various regulatory standards. It is ideal for controlling water flow in residential or commercial applications.

• Brass components in contact with potable water meet ASTM B584.
• Rated for 300 psig water pressure.
• Blow-out proof EPDM port seals enhance reliability.

Product Highlights

This curb stop features a PTFE coated brass ball for durability and EPDM soft goods that ensure longevity.

Product Information

Standard Information

• Brand: A.Y. McDonald
• MPN: 5129-183

Technical Specifications

• Ball Material: PTFE Coated Brass
• Body Material: Brass
• End Style: CTS PE COMP x FNPT
• Nominal Size: 3/4 in
• Pressure Rating: 300 psig
• Softgoods Material: EPDM
• Top to Inlet Center: 2.42 in
• Type: Straight Regular Pattern
• Manufacturer: A.Y. McDonald MFG CO
