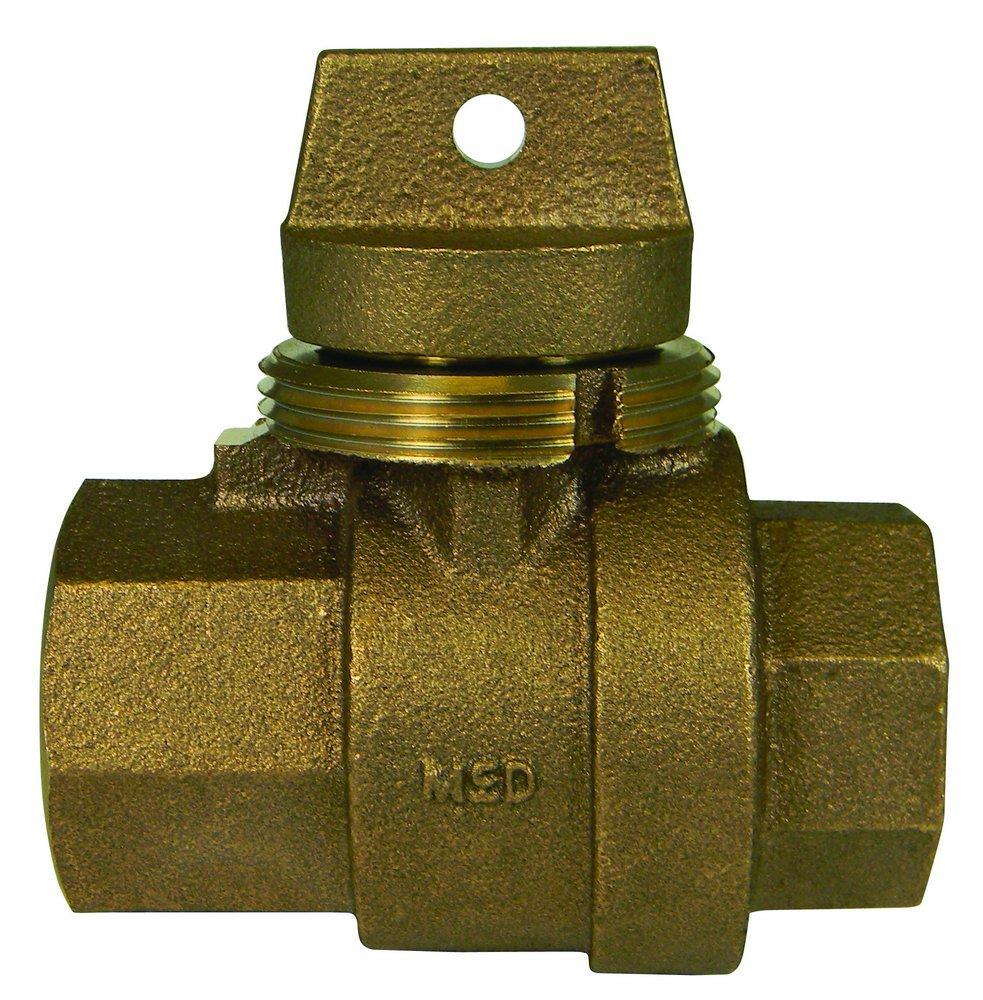

A.Y. McDonald 5129-122 2 in. FNPT Brass Ball Curb Stop M76105K

Product Description

The A.Y. McDonald 5129-122 is a 2 inch FNPT Brass Ball Curb Stop designed for water service applications. This curb stop is engineered to provide a dependable shut-off. It features a PTFE coated brass ball and blow-out proof EPDM seals, ensuring effective pressure management. The sealing mechanism includes an EPDM O-ring and thread locker, providing a secure fit and reliable operation.

• Blow-out proof EPDM port seals enhance durability.
• EPDM seals and trim material provide leak protection.
• Rated for a maximum water pressure of 300 psi.

Product Highlights

This curb stop is manufactured in compliance with industry standards including ANSI/AWWA C800. It is suitable for use in plumbing systems where a reliable shut-off is required.

Product Information

Standard Information

• Brand: A.Y. McDonald
• MPN: 5129-122

Technical Specifications

• Material of Body: Brass
• Ball Material: Brass
• Nominal Size: 2 inches
• Pressure Rating: 300 psi
• Inlet to Outlet Length: 5.08 inches
• Top to Inlet Center Height: 3.7 inches
• End Style: FNPT
• Softgoods Material: EPDM
