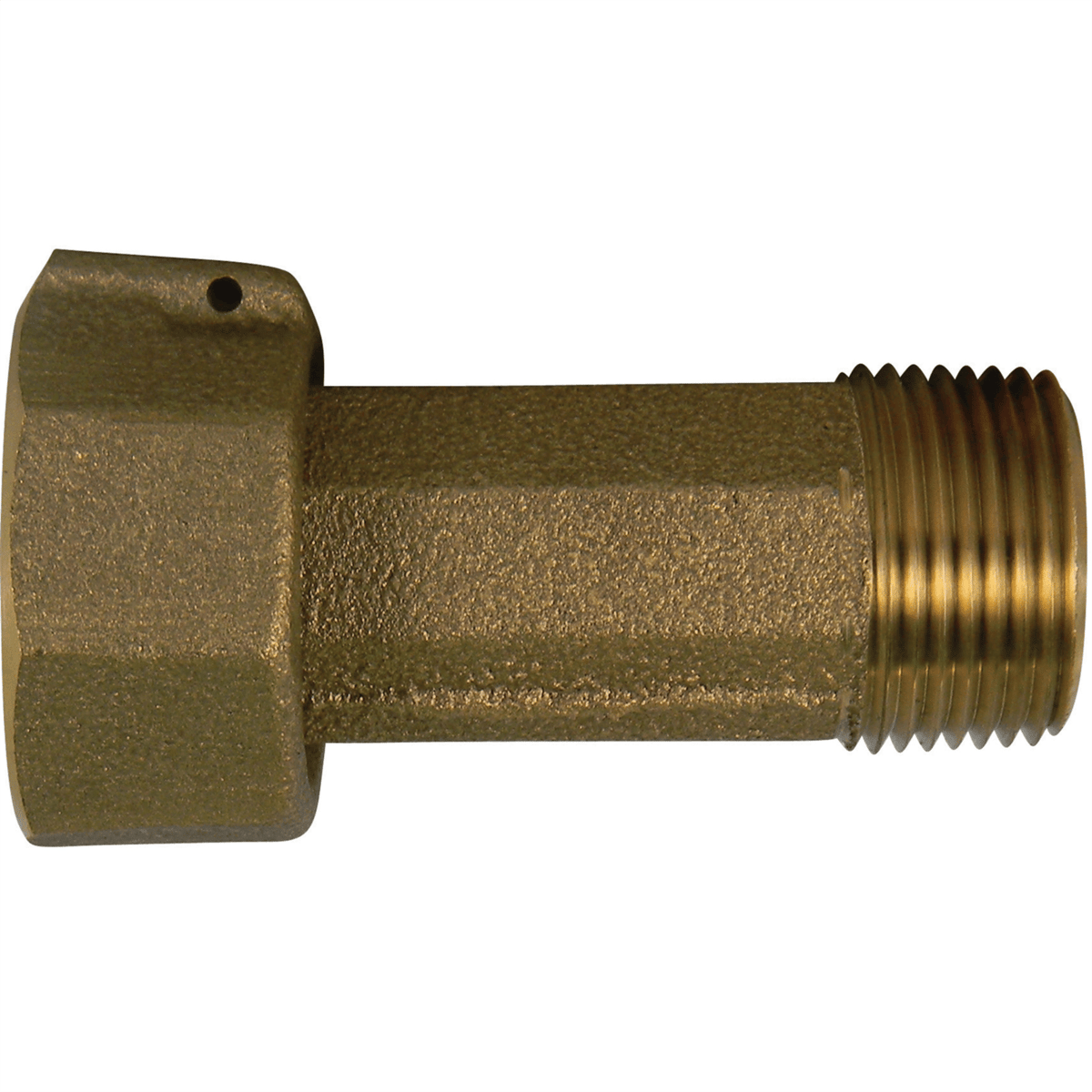

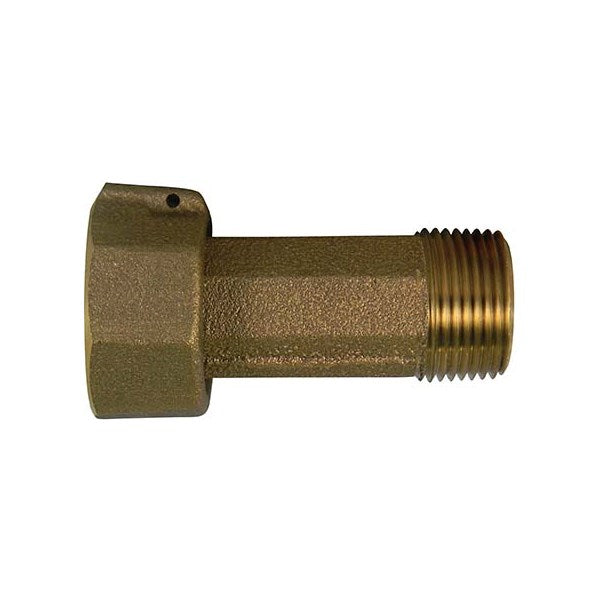

A.Y. Mcdonald 5124-111 74620 Straight Meter Coupling 1 in

Product Description

The A.Y. MCDONALD 5124-111 is a 74620 straight meter coupling. Meter swivel nuts have internal straight threads per AWWA C700 and include a hole for a wire seal. EPDM rubber gaskets are supplied as standard. It has a large wrench area for proper installation.

• 1" x 1" x 2.63"
• 1" Meter size
• 2-5/8" Length

Product Highlights

The A.Y. McDonald 5124-111 coupling is ideal for potable water applications. It features a meter swivel nut and MNPT connection.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 5124-111
• Country of Origin: United States

Technical Specifications

• Part Type: Meter Coupling
• Series: 74620
• Meter Size: 1
• Inlet Connection: Meter Swivel Nut
• Outlet Connection: MNPT
• Inlet Connection Size: 1
• Outlet Connection Size: 1
• Insert Stiff Req: NA
• Material: Brass
• Product Length: 2.63
• Product Line: Water Works
• Product Class: 414
• Commercial Category: Meter Couplings & Accessories
• Commercial Sub Category: Meter Couplings-Straight
• Commercial Style: 1xMNPT
• Quantity: 1
• Drilled For Seal Wire (Y/N): Y
• Lay Length (IN): 2-5/8
• Nominal Size Meter End (IN): 1
• Nominal Size End 2 (IN): 1
• Product Type: METER COUPLING
• Brand: A.Y. McDonald
• Application: POTABLE WATER
• Meter End Connection: METER NUT
• Low Lead Compliant (Y/N): Y
• End Connection 2: MALE IRON PIPE THREAD
• Nominal Size: 1 in
• Type: Straight
• Fitting / Connector Type: Coupling
• Manufacturer: A.Y. McDonald
• Manufacturer #: 5124-111
• End Style: Meter Swivel Nut with Wire Seal Hole x MNPT
• Domestic/Import: Domestic
• MPN: 5124-111
• Country of Origin: United States
• UPC: Does not apply
• Connection Type: Nut x MPT
• Height: 2.63 in
• Width: 1 in
