Product Description

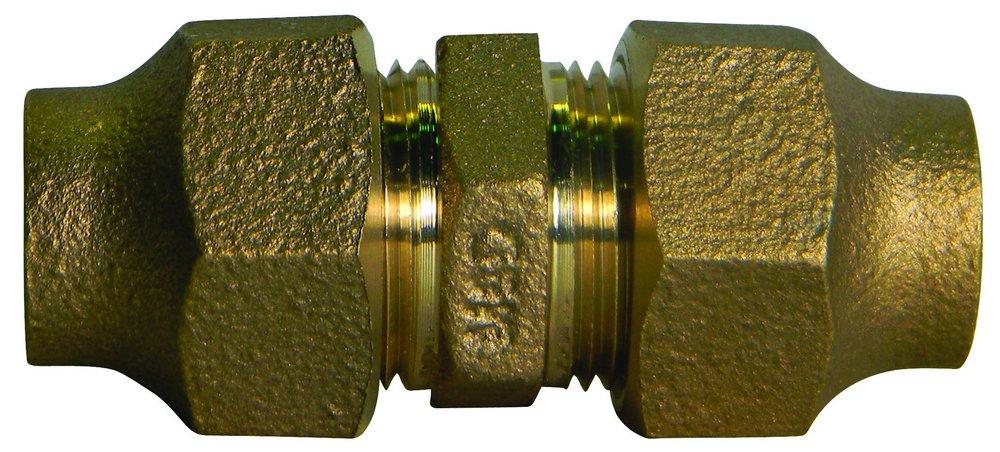

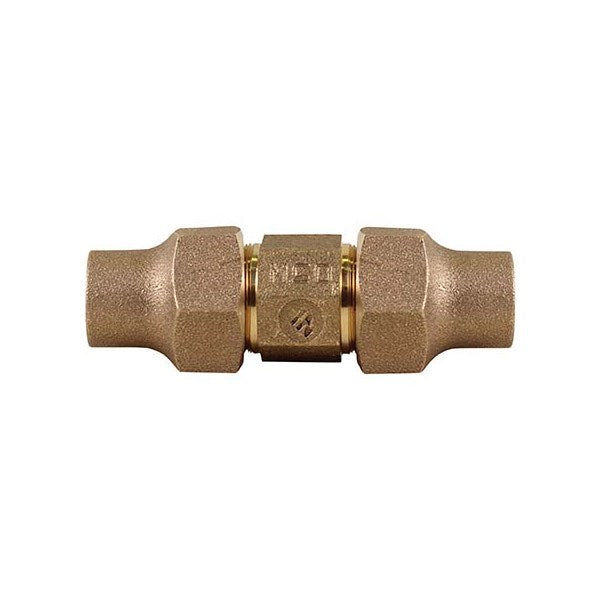

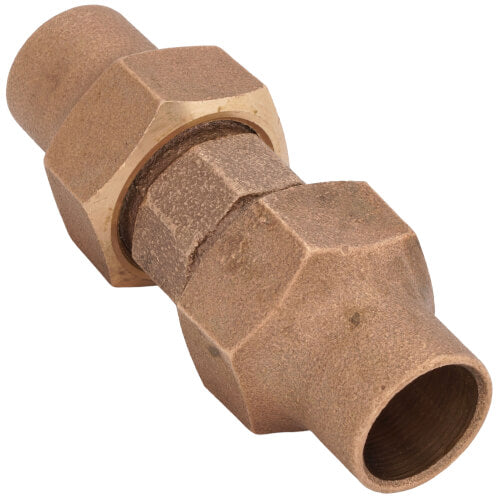

The A.Y. MCDONALD 5121-195 is designed and tested for cold potable water only. A.Y. McDonald Service Fittings are manufactured to meet or exceed the AWA C800 standard. These service fittings are rated to withstand the same pressures as the tubing they are designed to fit. Large wrench flats are provided for proper installation.
- Manufactured in compliance with ANSI/AWWA C800 (latest revision)
- Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest revision) and identified with ",NL"
- Certified to NSF/ANSI 61 and NSF/ANSI 372
Product Highlights
This coupling is suitable for use in cold potable water systems. It features a copper flare x copper flare end connection and is lead-free.
Product Information
Standard Information
-
Brand: A.Y. MCDONALD
-
Manufacturer Part Number: 5121-195
Technical Specifications
-
Product Type: Coupling
-
Size: 3/4" x 1"
-
Connection Type: Flare x Flare
-
Material: Brass
-
Standards Met: NSF 61, UNS C83600, ASTM B62, NSF 372, AWWA C800, UNS C89833, ASTM B584
-
Lead Free: Yes
-
Flare x Flare Connection: Yes
-
Part Type: Coupling
-
Series: 74758
-
Inlet Connection: Flare
-
Outlet Connection: Flare
-
Inlet Connection Size: 3/4
-
Outlet Connection Size: 1
-
Insert Stiff Req: NA
-
Tracer Wire: No
-
Product Line: Water Works
-
Product Class: 412
-
Commercial Category: Service Fittings
-
Commercial Sub Category: Couplings-Same End Connection
-
Commercial Style: FLRxFLR
-
Brand: A.Y. McDonald
-
Domestic/Import: Domestic
-
End Style: C Flare
-
Fitting/Connector Type: Coupling
-
Hex Size: 1.34 in
-
Nominal Size: 1 x 3/4 in
-
Type: Hex Straight
-
Applicable Standard: ANSI/AWWA C800, NSF/ANSI 61/372
-
Application: Cold Potable Water System
-
End Connection: Copper Flare x Copper Flare
-
Gasket Details: EPDM Rubber
-
Gasket Supplied: Yes
-
Material Specification: ASTM B584
-
Size A: 3/4 Inch
-
Size B: 1 Inch
-
VENDOR Product No: 5121-195
-
Vendor Short Name: 053565
-
MFG Number: 5121-195
-
Part Number: MCD74758131
-
Connection Size: 3/4 x 1 in.
