A Y MCDONALD 5120-193 74761t 3/4 Quarter Bend Cts X Cts -nl

Product Description

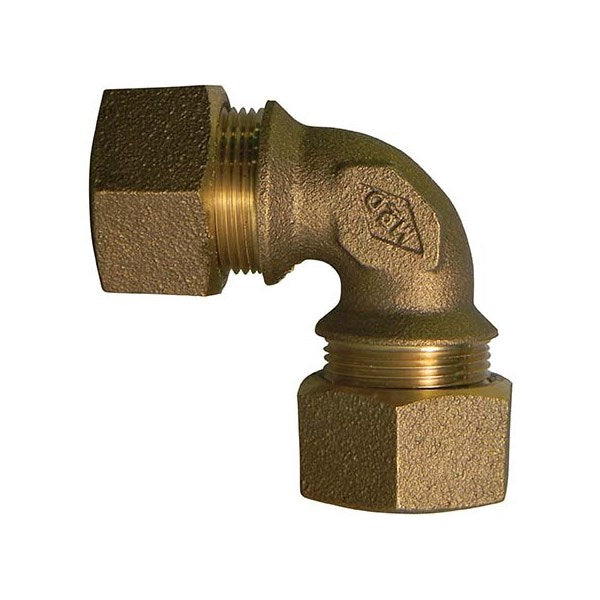

The A Y MCDONALD 5120-193 is a 74761T 3/4 quarter bend fitting with CTS T-Series Comp inlet and outlet connections. Constructed from NL Brass, this fitting is part of the Water Works product line. It is designed for use in service fitting applications, specifically as a quarter bend with CTSxCTS commercial style.

• Part Type: Fittings
• Series: 74761T
• Inlet and Outlet Connection: CTS T-Series Comp

Product Highlights

3/4 inch quarter bend fitting with NL Brass construction for waterworks service fitting applications.

Product Information

Standard Information

• Brand: A Y MCDONALD
• Manufacturer Part Number: 5120-193

Technical Specifications

• Part Type: Fittings
• Series: 74761T
• Inlet Connection: CTS T-Series Comp
• Outlet Connection: CTS T-Series Comp
• Inlet Connection Size: 3/4
• Outlet Connection Size: 3/4
• Insert Stiff Req: Must be used on flexible plastic connections
• Material: NL Brass
• Product Line: Water Works
• Product Class: 412
• Commercial Category: Service Fittings
• Commercial Sub Category: Quarter Bends-FLR,COMP,FNPT
• Commercial Style: CTSxCTS
