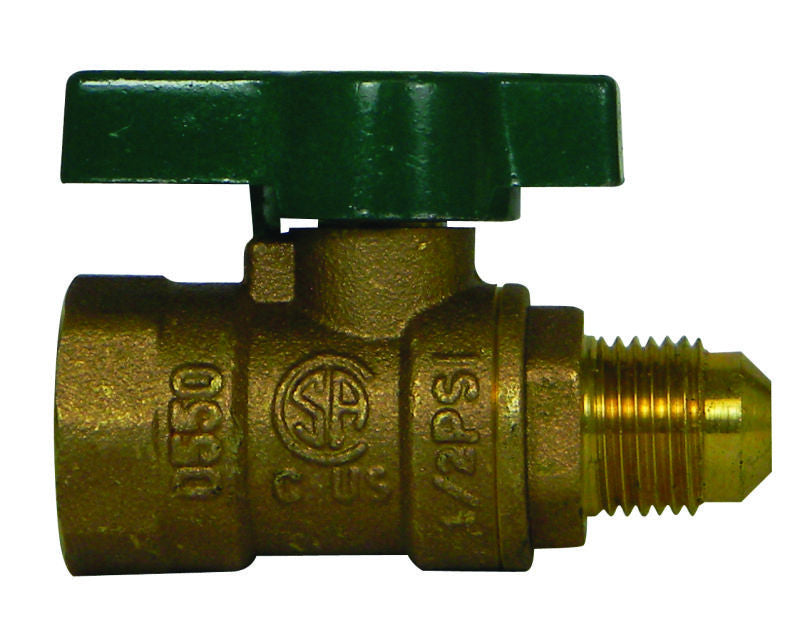

A.Y. McDonald 4901-118 1/2X3/8 Gas Ball Valve FNPT x Flare

Product Description

The A.Y. McDonald 4901-118 is a quarter-turn ball valve designed for low-pressure gas applications. This model features a nominal size of one-half by three-eighths inches with FNPT and flare connection types. It is made from chrome-plated brass and has a forged brass body for durability.

• Meets ANSI Z21.15 and cCSAus B16.44 standards.
• Suitable for commercial, industrial, and residential use.
• Designed to handle media like gas with a temperature rating of negative forty to one hundred twenty-five degrees Fahrenheit.

Product Highlights

This valve includes PTFE softgoods and a blow-out proof stem, ensuring reliable operation and safety in various environments.

Product Information

Standard Information

• Manufacturer: A.Y. McDonald
• Part Number: 1206393

Technical Specifications

• Model Number: 10712
• Nominal Size: 1/2 x 3/8 inches
• Media: Gas
• End Style: FNPT x Flare
• Inlet to Outlet Length: 2.34 inches
• Temperature Rating: -40 to 125 degrees Fahrenheit
• Ball Material: Chrome Plated Brass
• Body Material: Forged Brass
