A.Y. McDonald 4901-112 10710 1 Gas Ball Valve FNPT X FNPT

Product Description

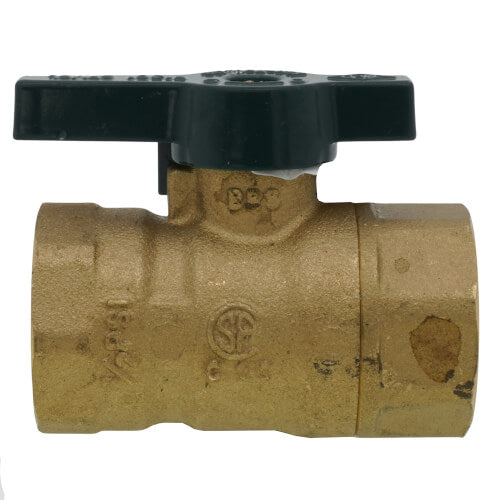

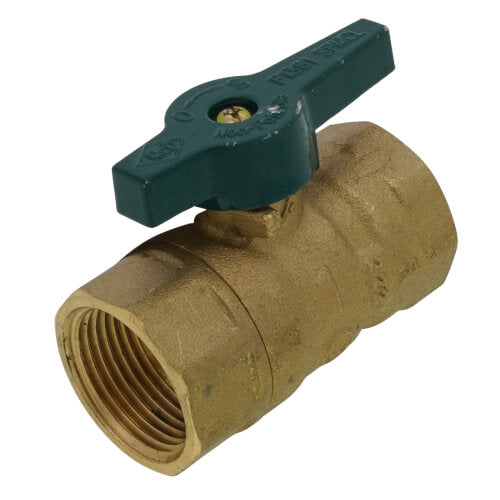

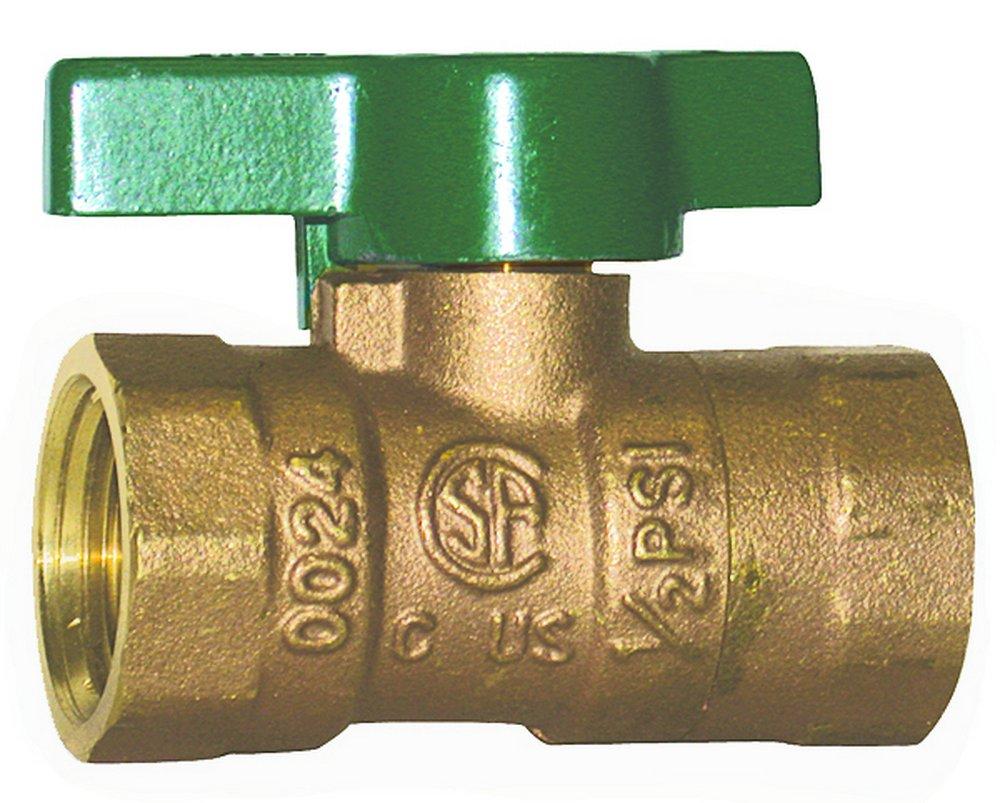

The A.Y. McDonald 4901-112 is a forged brass FNPT quarter turn handle gas ball valve. This valve is designed for low pressure applications and can handle media such as gas efficiently. Its quarter turn operation simplifies the process of opening and closing the valve.

• 1 inch nominal size.
• 150 psi pressure rating.
• Suitable for residential and commercial use.

Product Highlights

Product Information

Standard Information

• Brand: A.Y. McDonald
• Type: Ball Valve

Technical Specifications

• MPN: 4901-112
• Model Number: 10710
• Nominal Size: 1 inch
• Connection Type: FNPT
• Body Material: Forged Brass
• Ball Material: Chrome Plated Brass
• Pressure Rating: 150 psi
• Temperature Rating: -40 to 125 deg F
• Inlet to Outlet Length: 2.87 inches
• Softgoods Material: PTFE
• Top to Inlet Center: 1.66 inches
• Trim Material: Brass Stem
• Applications: Low pressure gas applications for residential, commercial, and industrial use.
