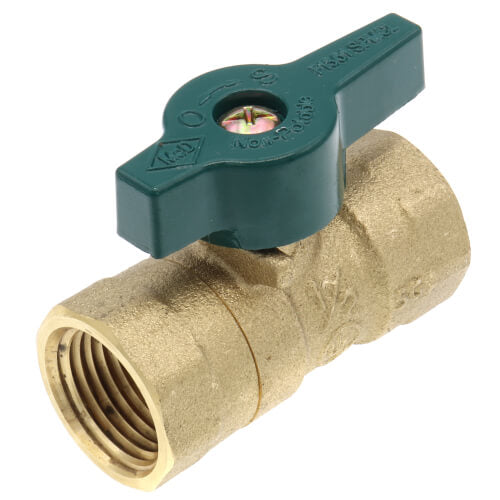

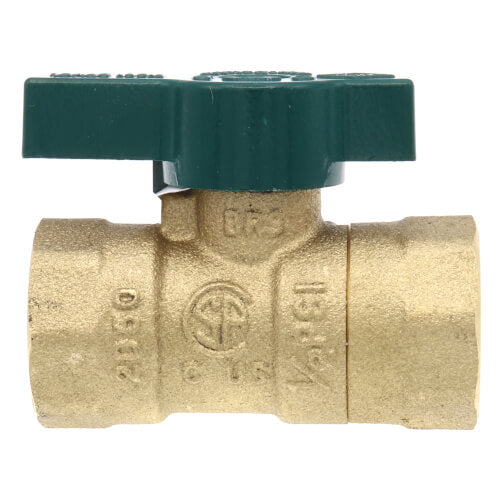

A.Y. McDonald 4901-110 10710 Gas Ball Valve FNPT X FNPT

Product Description

The A.Y. McDonald 4901-110 is a quarter-turn ball valve designed for low-pressure gas applications. This valve features a forged brass body and is rated for a pressure of up to 150 psi. With dimensions of 1/2 inch nominal size, it has FNPT ends for easy connection. The valve is suitable for use with natural gas and LP gases.

• Provides reliable gas flow control
• Constructed from durable forged brass
• Leads-free and suitable for safe water supply

Product Highlights

The A.Y. McDonald quarter-turn ball valve is designed for residential, commercial, and industrial applications. Its PTFE soft goods ensure durability and resistance to wear.

Product Information

Standard Information

• Manufacturer: A.Y. McDonald MFG CO
• Type: 2-Piece Low Pressure

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Forged Brass
• Nominal Size: 1/2 inch
• Pressure Rating: 150 psi
• Temperature Rating: -40 to 125 deg F
• Inlet to Outlet Length: 2.17 inch
• Top to Inlet Center: 1.22 inch
• Connection Type: FNPT
