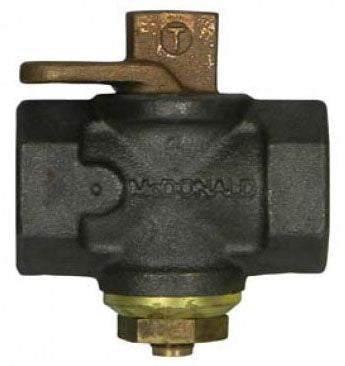

A.Y. McDonald 4812-180 Gas Plug Valve Flat Head 1-1/4 x 1-1/4 175 PSI

Product Description

A.Y. McDonald 4812-180 is a gas plug valve designed for high-performance use in domestic and piping systems. This valve features a flat head, is manual operated, and provides full port flow. Key components include a brass plug and cast iron body, ensuring durability and reliability in various applications.

• Manufactured to ANSI/ASME standards.
• Temperature rating from -20 to 150 degrees Fahrenheit.
• Pressure-rated up to 175 PSI, suitable for gas media.

Product Highlights

This valve excels in providing a secure gas connection while allowing for easy maintenance through its relubable design.

Product Information

Standard Information

• Manufacturer: A.Y. McDonald
• Body Material: Cast Iron

Technical Specifications

• Plug Material: Brass
• Nominal Size: 1-1/4 inch x 1-1/4 inch
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 3.88 inches
• Pressure Rating: 175 PSI
• Temperature Rating: -20 to 150 degrees Fahrenheit
• Actuation Type: Lockwing Handle
• Applicable Standard: ANSI/ASME B1.20.1, ASME B16.33
