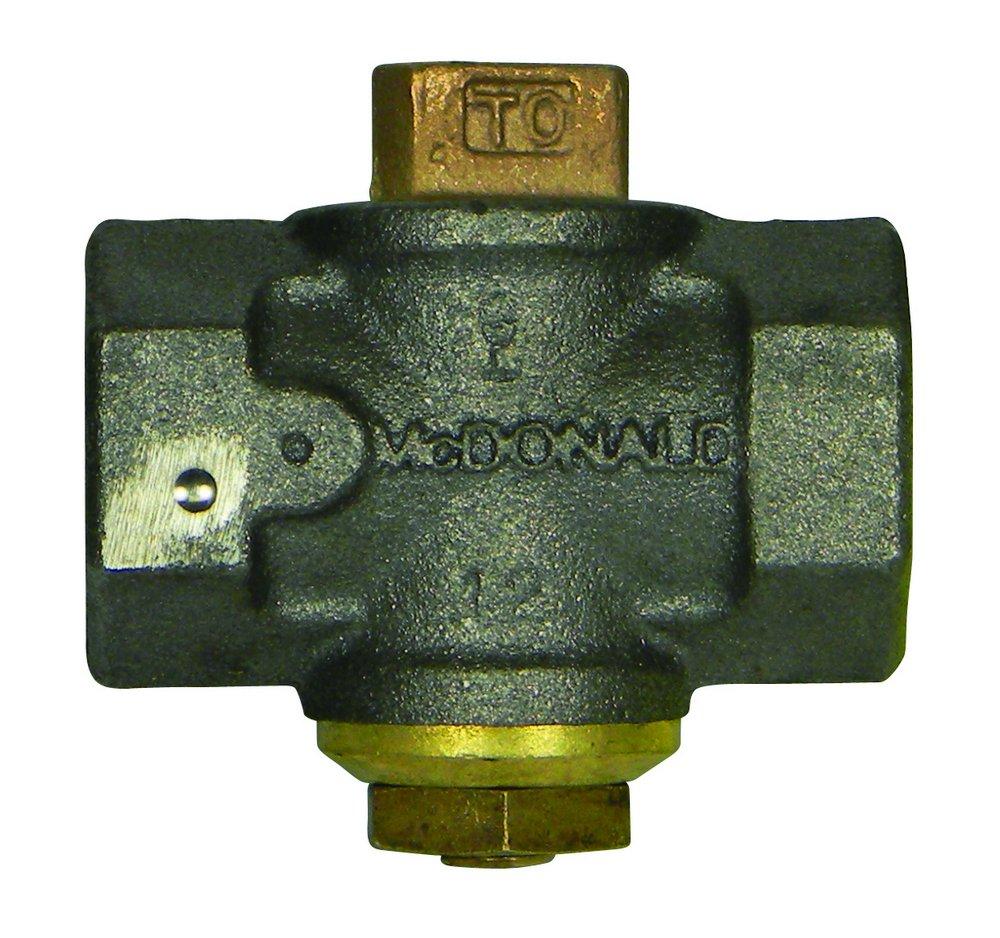

A.Y. McDonald 4812-164 10685B 1/2 in. Cast Iron 175 psig FNPT Gear Operator Plug Valve

Product Description

The A.Y. McDonald 4812-164 is a plug valve designed for use in gas applications. This valve features a nominal size of one-half inch and has a FNPT end connection. It is constructed from cast iron and has a pressure rating of 175 psi, making it suitable for above-ground gas piping systems.

• Nominal size: 1/2 inch
• Pressure rating: 175 psi
• Material: Cast Iron

Product Highlights

This valve is flat head tamperproof and contains O-ring seals. It is meant for use with natural and manufactured propane gas only. Following ASME B16.33 guidelines, this product supports a safe and reliable connection.

Product Information

Standard Information

• Manufacturer: A.Y. McDonald MFG CO
• Type: Flat Head Tamperproof

Technical Specifications

• Body Material: Iron
• Dimensions: 3.16 inches L x 3.14 inches W
• End Style: FNPT
• Finish: Galvanized
• Media: Gas
• Nominal Size: 1/2 inch
• Port Type: Full
• Temperature Rating: -20 to 150 degrees F
