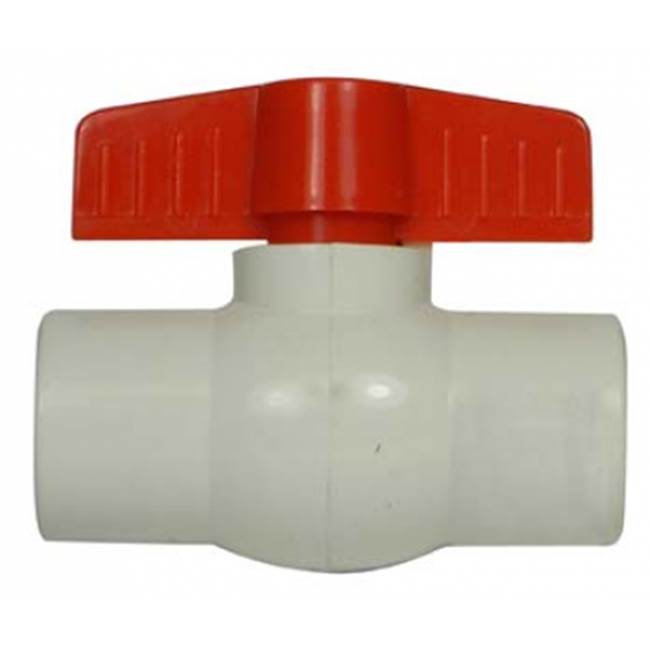

A Y McDonald 4424-257 2060S 4 PVC Ball Valve-Socket

Product Description

The A Y McDonald 4424-257 is a four-inch PVC ball valve designed for solvent welding. It operates at a pressure rating of 150 psi and is suitable for water applications. This valve features a handle actuator for easy operation and a durable PVC construction for long-lasting use. The valve's orifice measures five point twenty-four inches, with an inlet to outlet length of nine point nine inches and a top to inlet center measurement of five point ninety-one inches.

• Made of PVC material
• Compatible with schedule 40 and 80 PVC pipes
• PTFE seat and EPDM O-ring for enhanced sealing

Product Highlights

This product works effectively for water supply in residential, commercial, and industrial settings.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• MPN: 4424-257

Technical Specifications

• Actuator Type: Handle
• Ball Material: PVC
• Body Material: PVC
• End Style: Solvent
• Inlet to Outlet Length: 9.9 inches
• Media: Water
• Nominal Size: 4 inches
• Orifice Size: 5.24 inches
• Pressure Rating: 150 psi
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 73 degrees F
• Top to Inlet Center: 5.91 inches
• Trim Material: PTFE
