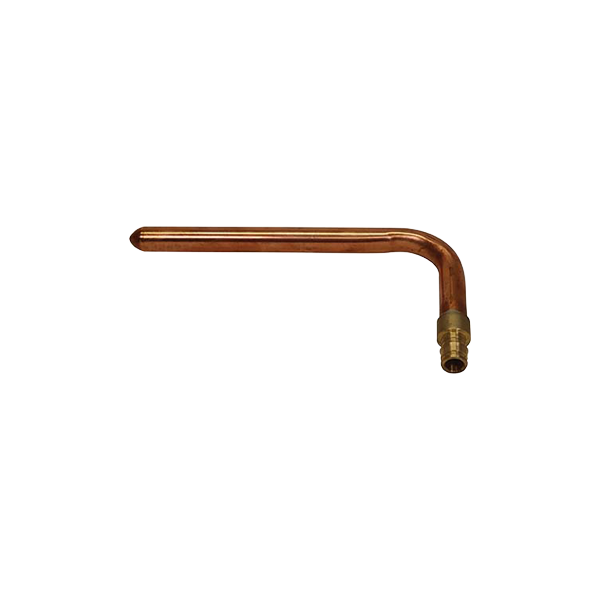

A.Y. Mcdonald 4423-468 2590EX 1/2X4x8 EXP PEX Stub Out Elbow

Product Description

The A.Y. MCDONALD 4423-468 is a 2590EX series expansion PEX stub out elbow fitting. It features an EXP PEX inlet connection and a spun closed end outlet connection. This stub elbow is designed for plumbing applications and is part of the expansion PEX NL brass commercial subcategory.

• EXP PEX Inlet Connection
• Spun Closed End Outlet Connection
• 90 deg Elbow

Product Highlights

Expansion PEX stub out elbow fitting with EXP PEX inlet and spun closed end outlet.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 4423-468

Technical Specifications

• Part Type: Stub Elbow
• Series: 2590EX
• Inlet Connection: EXP PEX
• Outlet Connection: Spun Closed End
• Inlet Connection Size: 1/2
• Outlet Connection Size: NA
• Product Line: Plumbing
• Product Class: 150
• Commercial Category: Fittings
• Commercial Sub Category: Expansion PEX NL Brass
• Commercial Style: Stub Out 8 Inch
• Domestic/Import: Import
• End Style: EXP PEX x Spun Closed End
• Fitting/Connector Type: 90 deg Elbow
• Material: Cross-linked Polyethylene
• Nominal Size: 1/2 x 4 x 8 in
• Type: Stub Out
• Manufacturer: A Y MCDONALD MFG CO
