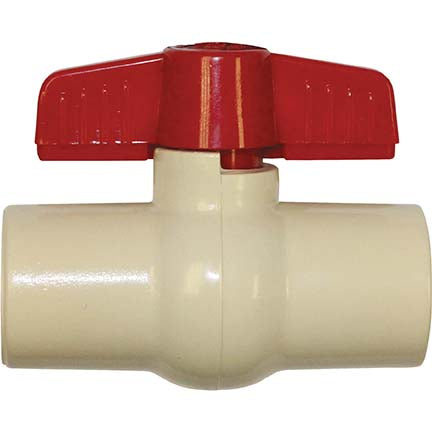

A Y McDonald 4421-026 2062 3/4 CPVC Ball Valve-Socket

Product Description

A Y McDonald 4421-026 is a 3/4 inch CPVC ball valve designed for solvent applications. It can handle a pressure rating of 100 psi and temperature up to 180 degrees Fahrenheit. This valve is suitable for use with water. The inlet to outlet length is 3.26 inches. It features a CPVC body and a PTFE seat trim.

• Maximum pressure rating of 100 psi
• Rated for temperatures up to 180 degrees Fahrenheit
• Suitable for hot water systems

Product Highlights

This valve meets the SCH 80/XH specification and incorporates EPDM soft goods for reliability and performance.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• Series: 2062

Technical Specifications

• Ball Material: CPVC
• Body Material: CPVC
• End Style: Solvent
• Inlet to Outlet Length: 3.26 inches
• Media: Water
• Nominal Size: 3/4 inches
• Pressure Rating: 100 psi
• Softgoods Material: EPDM
• Temperature Rating: 180 degrees Fahrenheit
• Trim Material: PTFE Seat
