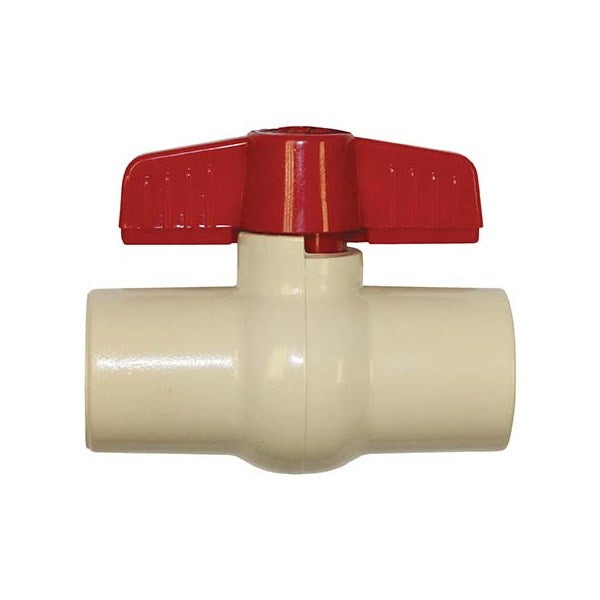

A Y McDonald 4421-025 2062 1/2 CPVC Ball Valve-Socket

Product Description

A Y McDonald offers the model 4421-025, a 1/2-inch nominal CPVC ball valve-socket designed for reliable performance in plumbing applications. This product is suitable for media such as water, with a pressure rating of one hundred psi and a temperature tolerance of up to one hundred eighty degrees Fahrenheit.

• Meets SCH 80/XH specifications
• EPDM O-ring enhances durability
• Compliant with NSF/ANSI 61 standards

Product Highlights

This CPVC ball valve features a solvent end style and a specific inlet to outlet length of two point sixty-seven inches, ideal for hot water systems.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• Type: Ball Valve

Technical Specifications

• Ball Material: CPVC
• Body Material: CPVC
• End Style: Solvent
• Inlet to Outlet Length: 2.67 inches
• Media: Water
• Nominal Size: 1/2 inches
• Pressure Rating: 100 psi
• Series: 2062
• Softgoods Material: EPDM
• Temperature Rating: 180 degrees Fahrenheit
• Trim Material: PTFE Seat
