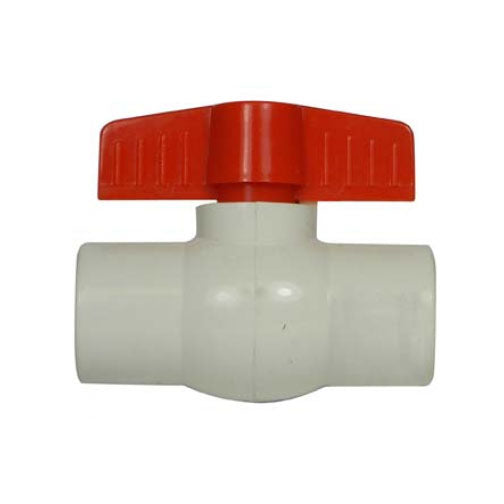

A Y McDonald 4421-023 2060T 1 1/2 PVC Ball Valve-FNPT

Product Description

The A Y McDonald 4421-023 is a 1-1/2 inch PVC ball valve designed for FNPT connections. It supports a maximum pressure of fifty psi and a temperature up to one hundred forty degrees Fahrenheit. This product is suitable for water media and built with PVC material for corrosion resistance.

• Schedule 80/XH specification
• Meets NSF/ANSI 61 standards
• Includes EPDM O-ring and PTFE seat seal

Product Highlights

This ball valve is suitable for commercial, industrial, and residential applications. Its design minimizes lead content, making it safe for potable water use.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• Type: Ball Valve
• Nominal Size: 1-1/2 inch
• Media: Water

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• End Style: FNPT
• Inlet to Outlet Length: 5.12 inches
• Pressure Rating: 50 psi
• Temperature Rating: 140 degrees Fahrenheit
• Softgoods Material: EPDM/PTFE
• Top to Inlet Center: 2.91 inches
