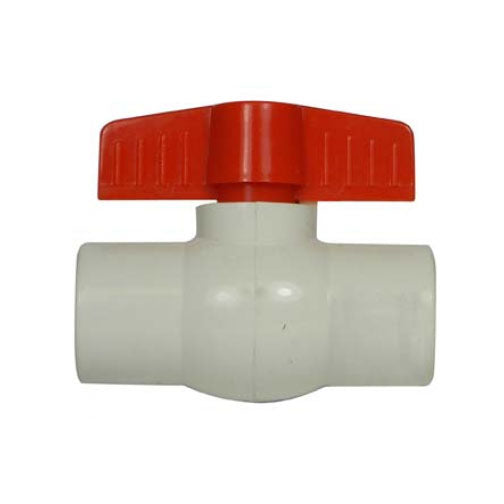

A Y McDonald 4421-022 2060T 1 1/4 PVC Ball Valve-FNPT

Product Description

A Y McDonald offers the 4421-022 2060T PVC ball valve, designed for efficient fluid control in various applications. This 1-1/4 inch nominal valve features FNPT connections suitable for water media. Its construction uses durable PVC material that makes it resistant to corrosion. The valve operates at a pressure rating of fifty psi and a temperature limit of one hundred forty degrees Fahrenheit.

• SCH 80/XH specification
• 150 psi at seventy-three degrees Fahrenheit
• No lead content lower than 0.25% in wetted surfaces

Product Highlights

Designed for commercial, industrial, and residential use, this valve adheres to NSF/ANSI 61 standards, ensuring safety in potable water applications.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• UPC: 053565228860

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• End Style: FNPT
• Inlet to Outlet Length: 4.76 inches
• Media: Water
• Nominal Size: 1-1/4 inches
• Pressure Rating: 50 psi
• Series: 2060T
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 140 degrees Fahrenheit
• Top to Inlet Center: 2.76 inches
