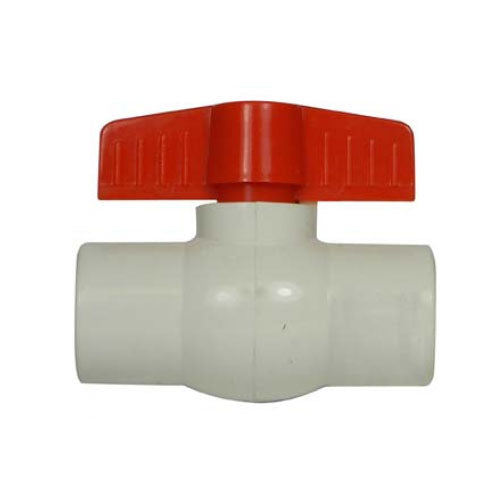

A Y McDonald 4421-016 2060S 1 1/4 PVC Ball Valve-Socket

Product Description

The A Y McDonald 4421-016 is a 1-1/4 inch PVC ball valve designed for efficient flow control in various plumbing applications. This valve operates effectively within a pressure rating of 50 PSI and a temperature limit of 140 degrees Fahrenheit. The product features a PVC ball and body, ensuring durability and compatibility with water media. The design accommodates solvent connections, making it suitable for both residential and commercial use.

• 1-1/4 inch nominal size
• Compatible with SCH 80/XH and SCH 40/STD PVC pipe
• NSF/ANSI 61 approved for safe water use

Product Highlights

This valve is ideal for controlling water flow in plumbing systems.

Product Information

Standard Information

• Brand: A Y McDonald MFG CO
• MPN: 4421-016

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• End Style: Solvent
• Inlet to Outlet Length: 4.842 inches
• Media: Water
• Pressure Rating: 50 PSI
• Series: 2060S
• Softgoods Material: EPDM
• Temperature Rating: 140 degrees Fahrenheit
• Top to Inlet Center: 2.598 inches
• Trim Material: PVC Stem and EPDM Seat
• UPC: 053565228808
