A Y McDonald 4421-015 2060S 1 PVC Ball Valve-Socket

Product Description

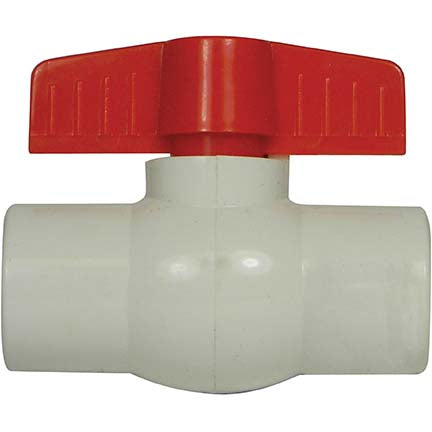

The A.Y. McDonald 4421-015 is a 1-inch PVC ball valve designed for use in plumbing systems. This valve is capable of handling media such as water at pressures up to fifty psi and temperatures reaching one hundred forty degrees Fahrenheit. It features a solvent end style, making it suitable for various pipe connections.

• Compatible with SCH 80/XH and SCH 40/STD PVC pipe
• Rated for 150 psi at seventy-three degrees Fahrenheit
• Contains less than 0.25% lead in wetted surfaces

Product Highlights

Ideal for commercial, industrial, and residential applications. NSF/ANSI 61 approved for safety.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• UPC: 053565228792

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• End Style: Solvent
• Inlet to Outlet Length: 4.173 inches
• Media: Water
• Nominal Size: 1 inch
• Pressure Rating: 50 psi
• Series: 2060S
• Softgoods Material: EPDM
• Temperature Rating: 140 degrees Fahrenheit
• Top to Inlet Center: 2.402 inches
• Trim Material: PVC Stem and EPDM Seat
