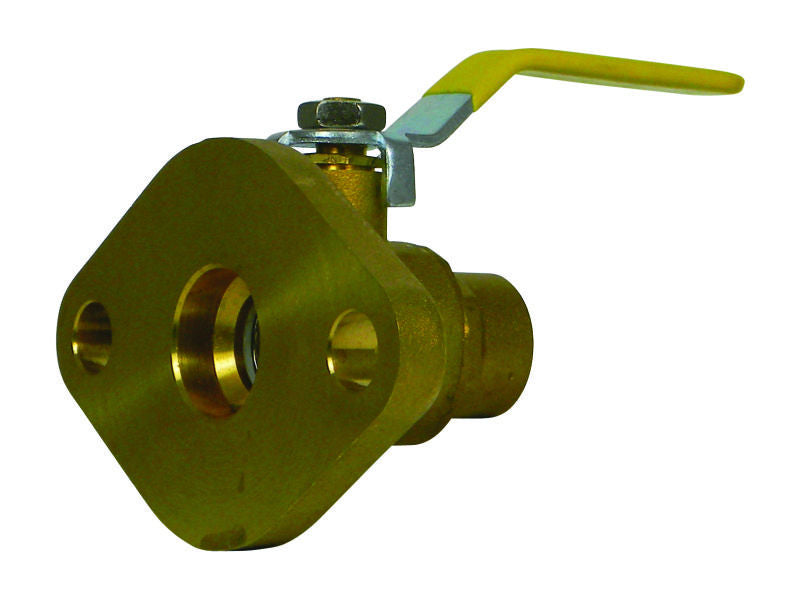

A.Y. McDonald 4420-440 1 1/4 Full Port Ball Valve Sweat x Flange

Product Description

The A.Y. McDonald 4420-440 is a ball valve designed for fluid control in plumbing systems. This valve features a sweat x flange connection and is made from durable forged brass. The product is suitable for various applications, including commercial, industrial, and residential environments.

• Full port design for unrestricted flow
• Temperature rating from thirty-two to three hundred fifty degrees Fahrenheit
• Pressure rated at four hundred pounds per square inch for water, oil, and gas service

Product Highlights

Reliable isolation valve ideal for circulator pumps.

Product Information

Standard Information

• Manufacturer: A.Y. McDonald
• Part Number: 843595

Technical Specifications

• Model Number: 2029S
• Nominal Size: 1-1/4 inches
• Inlet to Outlet Length: 3.44 inches
• Top to Inlet Center: 2.4 inches
• Body Material: Forged Brass
• Ball Material: Chrome Plated Brass
• End Style: Sweat x Flanged
• Pressure Rating: 400 psi WOG
• Temperature Rating: 32 to 350 degrees Fahrenheit
• Softgoods Material: NBR
• Trim Material: Brass Stem and PTFE Seat
• Product Type: Ball Valve
• UPC: 053565385778
