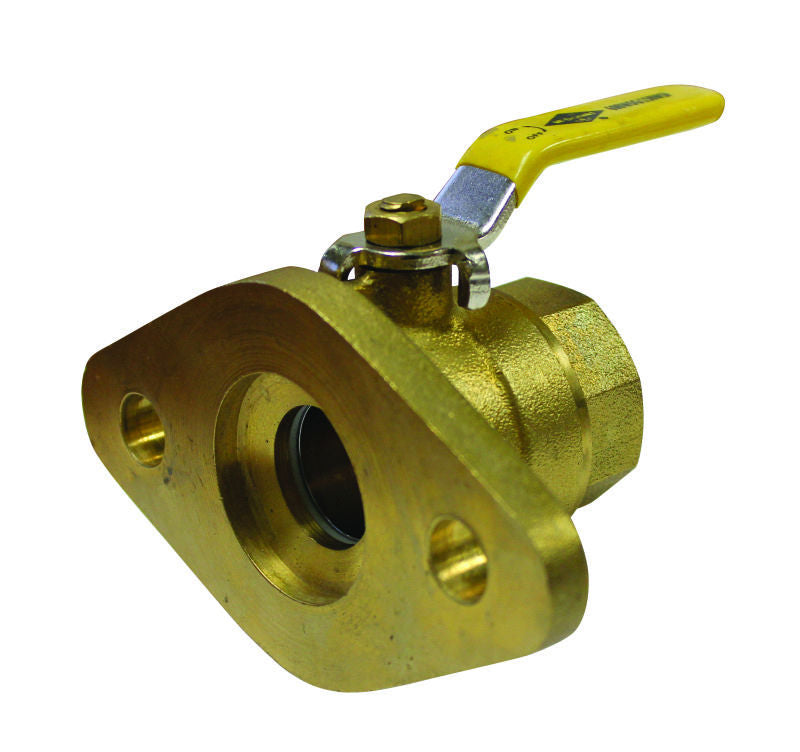

A.Y. McDonald 4420-433 1 Full Port Ball Valve FNPT x Flange

Product Description

The A.Y. McDonald 4420-433 is a one-inch full port ball valve designed for non-potable applications. It features a FNPT x Flange end style and has a pressure rating of four hundred psi WOG. This valve is constructed with a chrome-plated brass ball and a forged brass body, ensuring durability and resistance to corrosion.

• Blow-out proof stem to enhance safety and reliability.
• Isolation valve ideal for circulator pumps.
• Complies with ANSI B1.20.1 and MSS-SP-110 standards.

Product Highlights

This product is suitable for various applications including commercial, industrial, and residential use.

Product Information

Standard Information

• Manufacturer: A.Y. McDonald MFG CO
• Product Type: Ball Valve

Technical Specifications

• Model Number: 2029T
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 400 psi WOG
• Temperature Rating: 32 to 350 deg F
• Inlet to Outlet Length: 2.48 in
• Top to Inlet Center: 2.4 in
• Ball Material: Chrome Plated Brass
• Body Material: Forged Brass
• Softgoods Material: NBR
• Trim Material: Brass Stem and PTFE Seat
