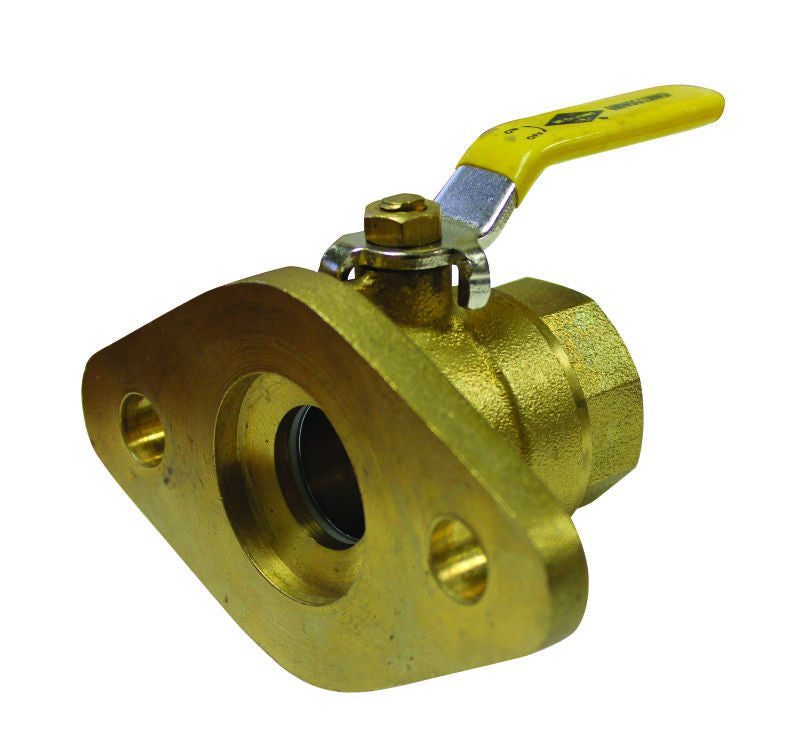

A.Y. McDonald 4420-432 2029T 3/4 Full Port Ball Valve FNPT x Flange

Product Description

The A.Y. McDonald 4420-432 is a 3/4 inch full port ball valve designed for plumbing applications. This valve features FNPT x Flange end styles and is suitable for both commercial and industrial uses. The forged brass construction ensures durability and reliability.

• Blow-out proof stem for enhanced safety.
• Isolation valve ideal for circulator pump applications.
• Lead-free construction with a weighted average of lead content below 0.25%.

Product Highlights

High-quality ball valve made from chrome plated brass, ideal for non-potable applications.

Product Information

Standard Information

• Manufacturer: A.Y. McDonald
• MPN: 4420-432

Technical Specifications

• Nominal Size: 3/4 inch
• Inlet to Outlet Length: 2.18 inches
• Top to Inlet Center: 2.4 inches
• Temperature Rating: 32 to 350 degrees Fahrenheit
• Pressure Rating: 400 psi WOG
• Ball Material: Chrome Plated Brass
• Body Material: Forged Brass
• Trim Material: Brass Stem and PTFE Seat
• Softgoods Material: NBR
• Series: 2029T
• End Style: FNPT x Flange
• Type: Non-Potable
