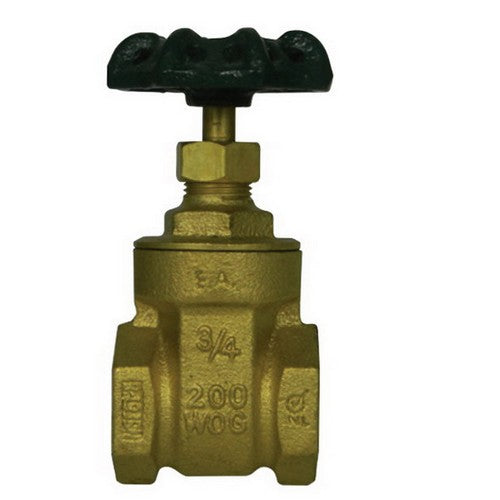

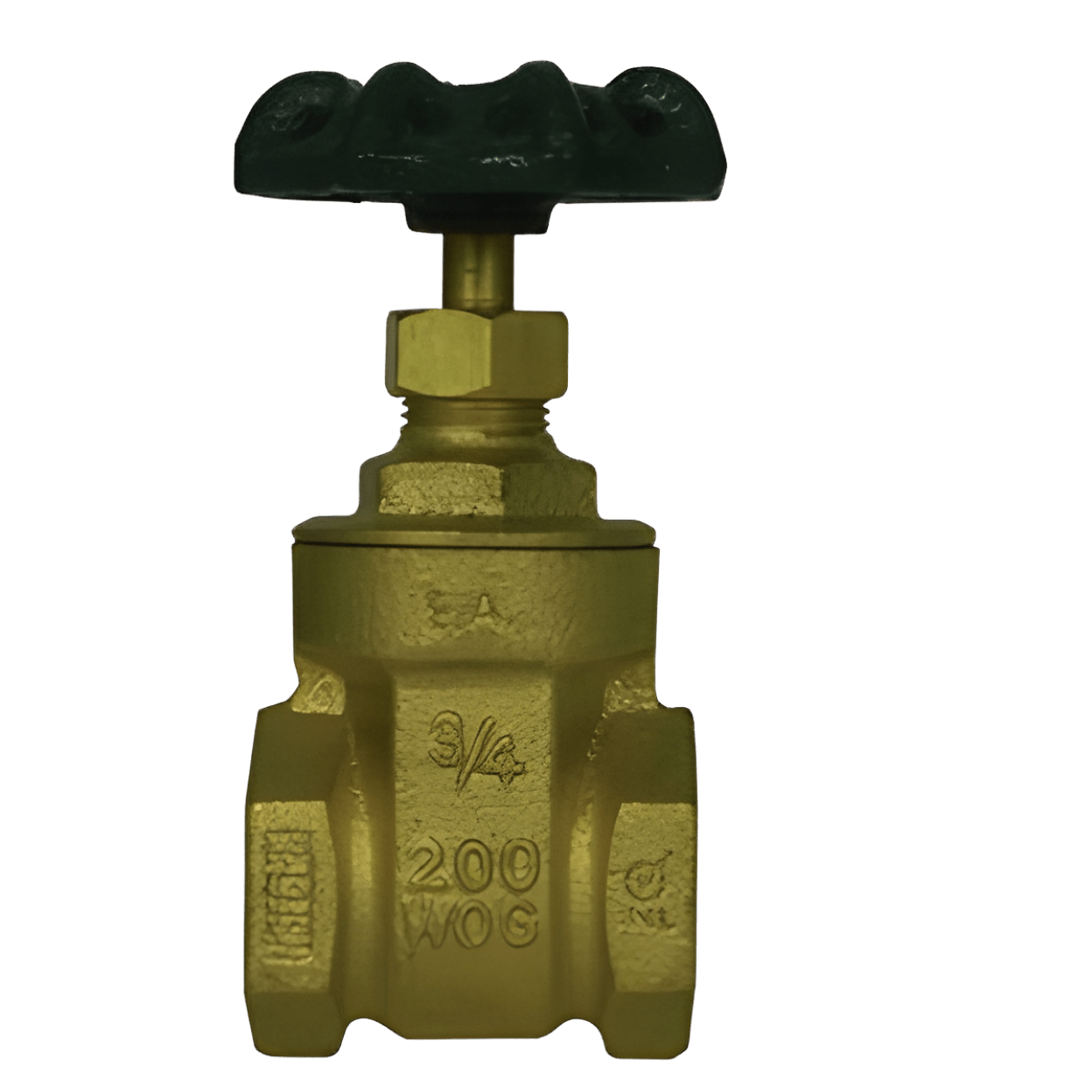

A Y McDonald 4420-128 2035T 1 Full Port Gate Valve FNPT

Product Description

A.Y. McDonald offers the 4420-128 gate valve designed for non-potable applications with a nominal size of one inch. This valve features FNPT end styles and can withstand a pressure rating of 200 psi. It is equipped with a handwheel actuator for ease of operation. The valve ensures full flow with its full port design, making it suitable for various plumbing applications where a reliable shut-off is needed.

• Non-rising stem design
• Meets ANSI standards for threads and solder ends
• No lead content, ensuring safety

Product Highlights

This A.Y. McDonald valve is built with a cast brass body and trim, ensuring durability. The graphite gland packing enhances its sealing capability, making it ideal for controlling water flow in residential and commercial settings.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• Product Type: Non-Potable Gate Valve

Technical Specifications

• Nominal Size: 1 inch
• End Style: FNPT
• Pressure Rating: 200 psi
• Inlet to Outlet Length: 2.11 inches
• Top to Inlet Center: 3.82 inches
• Hand Wheel Diameter: 2.38 inches
• Body Material: Brass
• Softgoods Material: Graphite Gland Packing
