A Y McDonald 4178-241 4835A 4X1 DI S SS STRP SDL 4.50-4.80xAWWA

Product Description

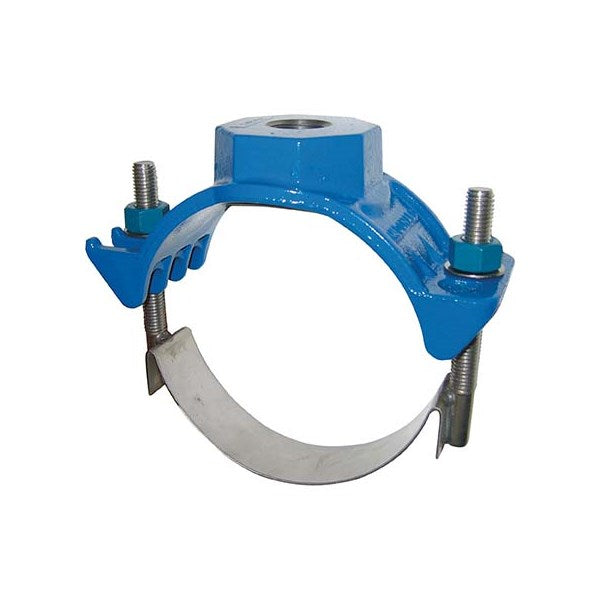

A Y McDonald Service Saddle 4178-241 is designed for connecting pipes with a nominal size of four by one inch. This product is made from ductile iron and features AWWA taper threads. It has a pressure rating of two hundred psig and is equipped with an EPDM gasket.

• Includes 304L stainless steel straps and studs
• Designed for C900 PVC pipe with outer diameters from four point five to four point eight inches
• Meets ANSI/AWWA C800 and ANSI/NSF 61 standards

Product Highlights

This saddle is suitable for various plumbing applications, providing a reliable connection and ensuring a secure tap on the mainline.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• UPC: 053565434698

Technical Specifications

• Clamp Material: Ductile Iron
• Color: Blue
• Connection Type: AWWA Taper Thread
• Dimensions: 4.2 inches Wide
• Finish: Fusion Epoxy Powder Coated
• Gasket Material: EPDM
• Nominal Size: 4 x 1 inches
• Pressure Rating: 200 psig
