A.Y. Mcdonald 4148-014 8 x 1 in. CC Brass Double Strap Saddle

Product Description

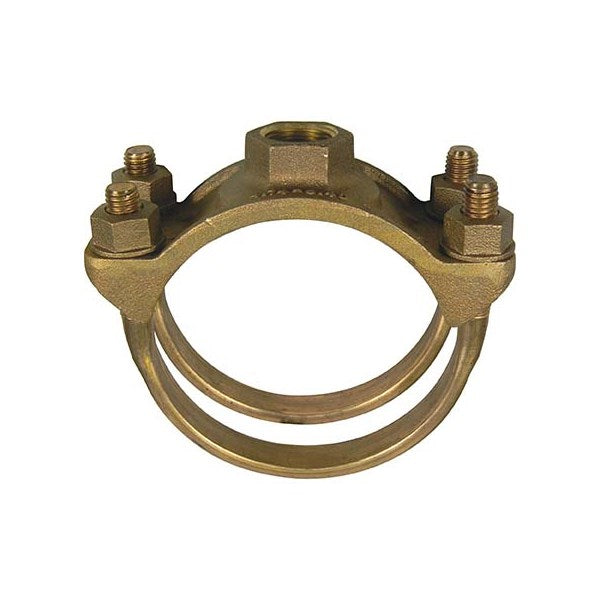

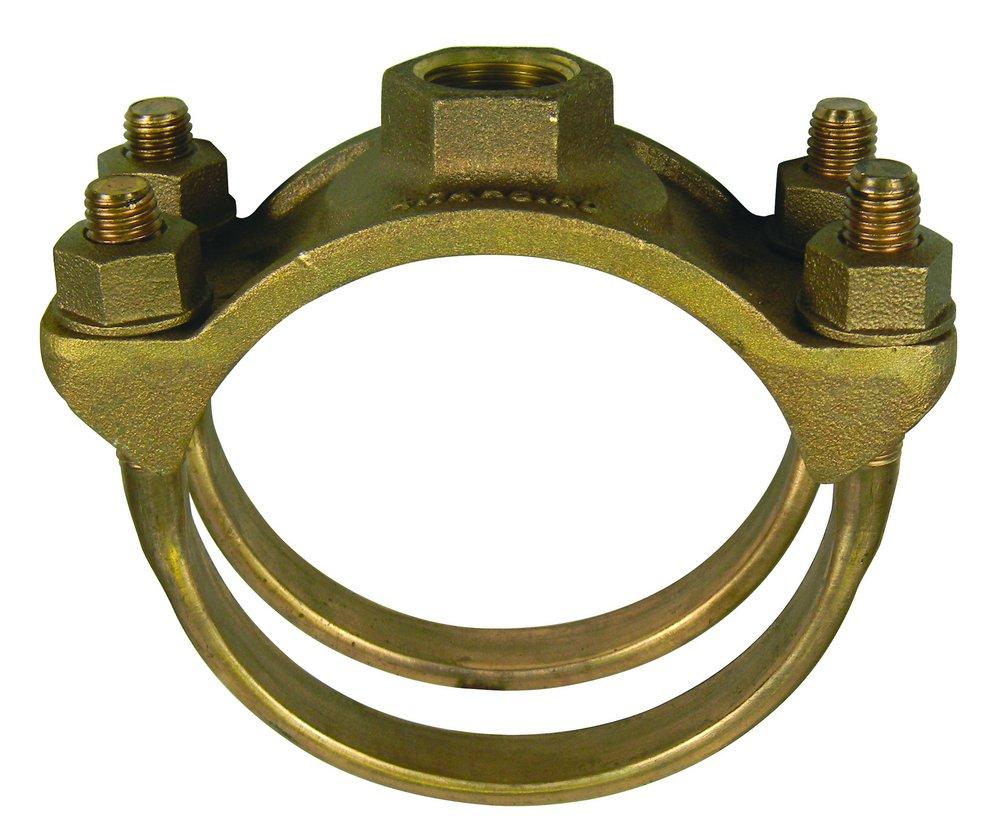

The A.Y. McDonald 4148-014 double bronze bale brass service saddle is designed for use on service line connections to ductile iron, asbestos-cement or cast iron O.D. pipe water mains. It fits pipe size 8 x 1 in. and has a connection type of AWWA/CC. The saddle has a pressure rating of 200 psi.

• Silicon bronze strap(s) and cast brass nuts with enlarged washer bearing surface
• Pipe and tap size and thread-type identified on saddle
• Outlet boss with large wrench flats

Product Highlights

The A.Y. McDonald 4148-014 is ideal for waterworks applications. It features a cast brass saddle material and EPDM gasket material.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 4148-014
• Country of Origin: Domestic

Technical Specifications

• Part Type: Saddle
• Series: 3825
• Material: Brass
• Pipe Diameter: 8 (8.99-9.67 O.D. Range)
• Saddle Type: Double Bronze Bale
• Tapped Outlet: 1" AWWA
• Other Options: EPDM O-ring
• Product Line: Water Works
• Product Class: 292
• Commercial Category: Service Saddles
• Commercial Sub Category: DBL Bronze Bale Saddles-AWWA
• Commercial Style: 8 (8.99-9.67 O.D. Range)
• Clamp Material: Brass
• Connection Type: AWWA/CC
• Domestic/Import: Domestic
• Fits Pipe Size: 8 x 1 in
• Gasket Material: EPDM
• Model: 3825
• Pressure Rating: 200 psi
• Saddle Material: Cast Brass
• Product Type: Plumbing Part
