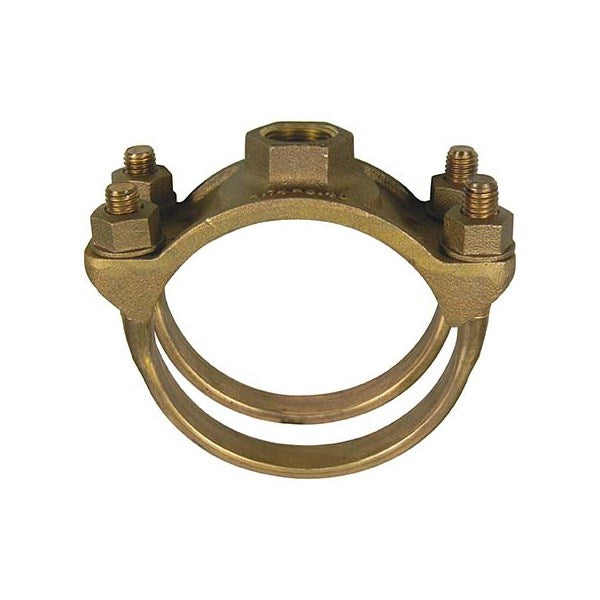

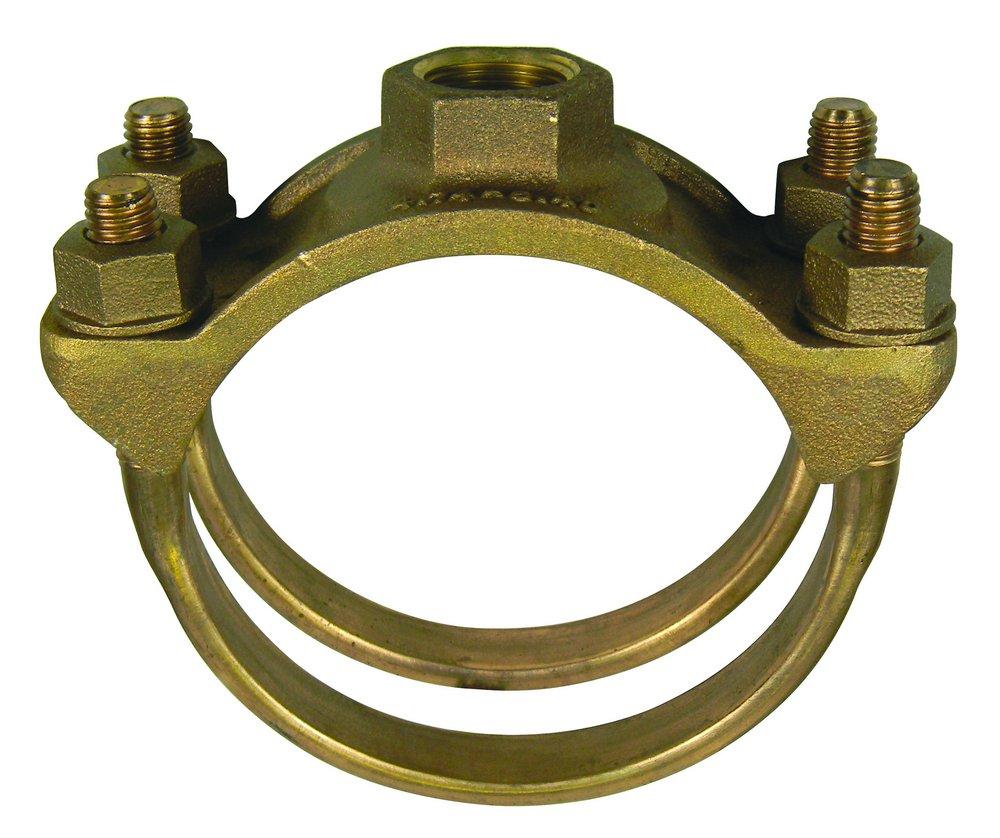

A.Y. Mcdonald 4148-012 8 x 3/4 in. CC Brass Double Strap Saddle

Product Description

The A.Y. McDonald 4148-012 is an 8 x 3/4 in. CC Brass Double Strap Saddle. Designed for service line connections to ductile iron, asbestos-cement, or cast iron O.D. pipe water mains. It has a 3/4" AWWA tapped outlet and EPDM O-ring.

• Silicon bronze strap(s) and cast brass nuts with enlarged washer bearing surface
• Pipe and tap size and thread-type identified on saddle
• Outlet boss with large wrench flats

Product Highlights

The A.Y. McDonald double strap saddle is suitable for waterworks applications. It features a brass clamp and EPDM gasket.

Product Information

Standard Information

• Brand: A.Y. MCDONALD
• Manufacturer Part Number: 4148-012
• Country of Origin: US

Technical Specifications

• Part Type: Saddle
• Series: 3825
• Material: Brass
• Pipe Diameter: 8 (8.99-9.67 O.D. Range)
• Saddle Type: Double Bronze Bale
• Tapped Outlet: 3/4" AWWA
• Other Options: EPDM O-ring
• Product Line: Water Works
• Product Class: 292
• Commercial Category: Service Saddles
• Commercial Sub Category: DBL Bronze Bale Saddles-AWWA
• Commercial Style: 8 (8.99-9.67 O.D. Range)
• Type: Double Strap
• Standards: ANSI/AWWA C800, ASTM, NSF/ANSI 61, UNS C83600-85-5-5-5
• Tap Size: 3/4 inch
• Nominal Size: 8 inch
• Connection Type: AWWA/CC
• Pressure Rating: 200 psi
• Applications: For Use on Service Line Connections to Ductile Iron, Asbestos-Cement or Cast Iron O.D. Pipe Water Mains
• Clamp Material: Cast Brass/Silicon Bronze
• Gasket Material: EPDM
• Hole Diameter: 8.99 to 9.67 in OD
• Schedule Rating: SCH 40/STD or SCH 80/XH
• Brand: A.Y. McDonald
• UNSPSC: 40175307
• Alternate Part Number 1: 3825
• Model Number: 4148-012
• UPC: 053565220215
• Product Type: Plumbing Part
