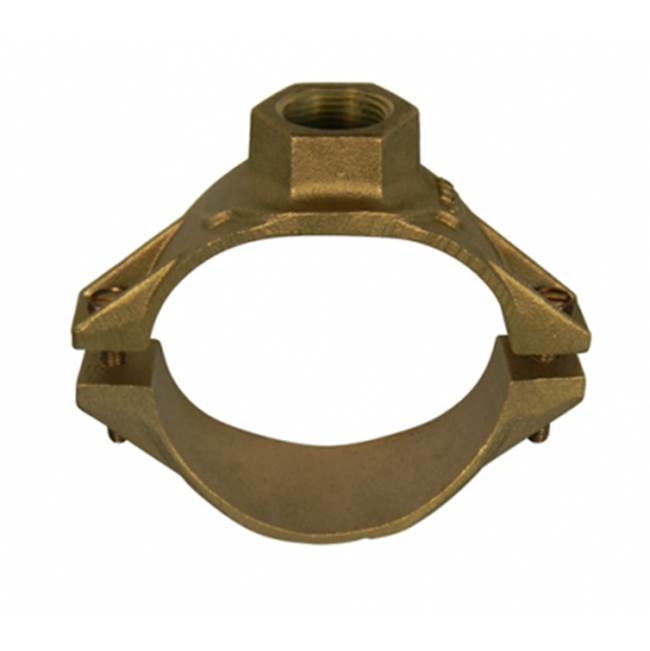

A Y McDonald 4128-119 3802 6X1 Saddle 2 Bolt 6.63 X FNPT

Product Description

A Y McDonald 4128-119 is a 2-piece bolted hinged service saddle designed for plumbing applications. This saddle fits a nominal size of six by one inches and connects using FNPT. It is suitable for SCH 40/STD or SCH 80/XH pipes with a pressure rating of two hundred psig.

• Constructed from durable materials, such as silicon bronze and cast brass.
• Includes an EPDM gasket for reliable sealing.
• Features a bolt size of five-sixteenths by eighteen UNC-2A.

Product Highlights

The A Y McDonald service saddle is engineered for secure pipe connections and easy installation. Its design includes a clamp for stability and a gasket for sealing, making it a reliable choice for trade professionals.

Product Information

Standard Information

• Brand: A Y McDonald MFG CO
• Product Link: View Product

Technical Specifications

• Bolt Material: Silicon Bronze
• Bolt Size: 5/16-18 UNC-2A x 2 in L
• Clamp Material: Cast Brass
• Connection Type: FNPT
• Dimensions: 6-5/8 in ID
• Domestic/Import: Domestic
• Gasket Material: EPDM
• Hole Diameter: 6.63 in OD
• Nominal Size: 6 x 1 in
• Pressure Rating: 200 psig
• Schedule Rating: SCH 40/STD or SCH 80/XH
• Type: 2-Piece Bolted Hinged
