A Y McDonald 4128-108 3801 3X3/4 Saddle 2 Bolt 3.50 X AWWA

Product Description

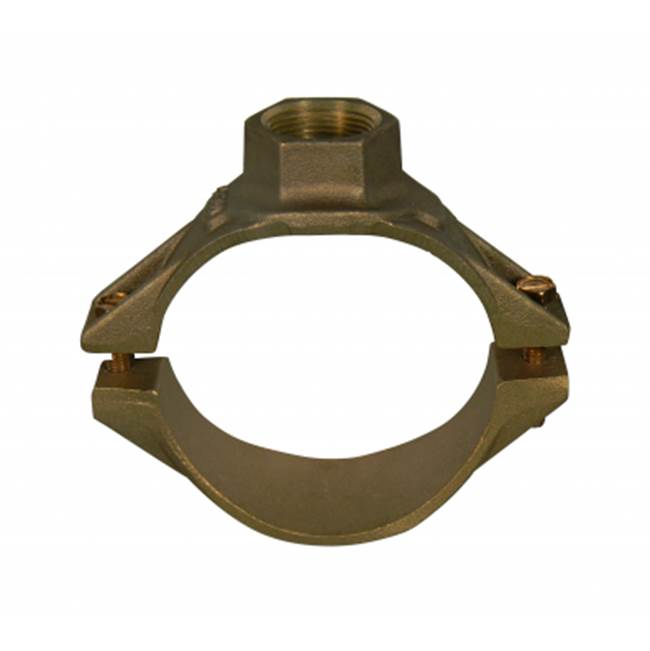

A Y McDonald Service Saddle, MPN 4128-108, is designed for plumbing applications. This 2-piece saddle fits a nominal size of three inches by three-quarters of an inch. It connects using AWWA taper threads and supports up to 200 psi pressure. The saddle is made using durable materials including a cast brass clamp, silicon bronze bolts, and an EPDM gasket.

• Nominal size of three inches by three-quarters of an inch
• Pressure rating of 200 psi
• Silicon bronze construction for durability

Product Highlights

This saddle is essential for tap installations and ensuring leak-free connections.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• UPC: 053565034157

Technical Specifications

• Type: 2-Piece
• Bolt Material: Silicon Bronze
• Bolt Size: 5/16-18 UNC-2A x 2 inches long
• Clamp Material: Cast Brass
• Connection Type: AWWA Taper Thread
• Dimensions: 2.2 inches wide
• Gasket Material: EPDM
• Hole Diameter: 3-1/2 inches OD
• Pressure Rating: 200 psi
• Schedule Rating: SCH 40/STD or SCH 80/XH
• Domestic/Import: Domestic
