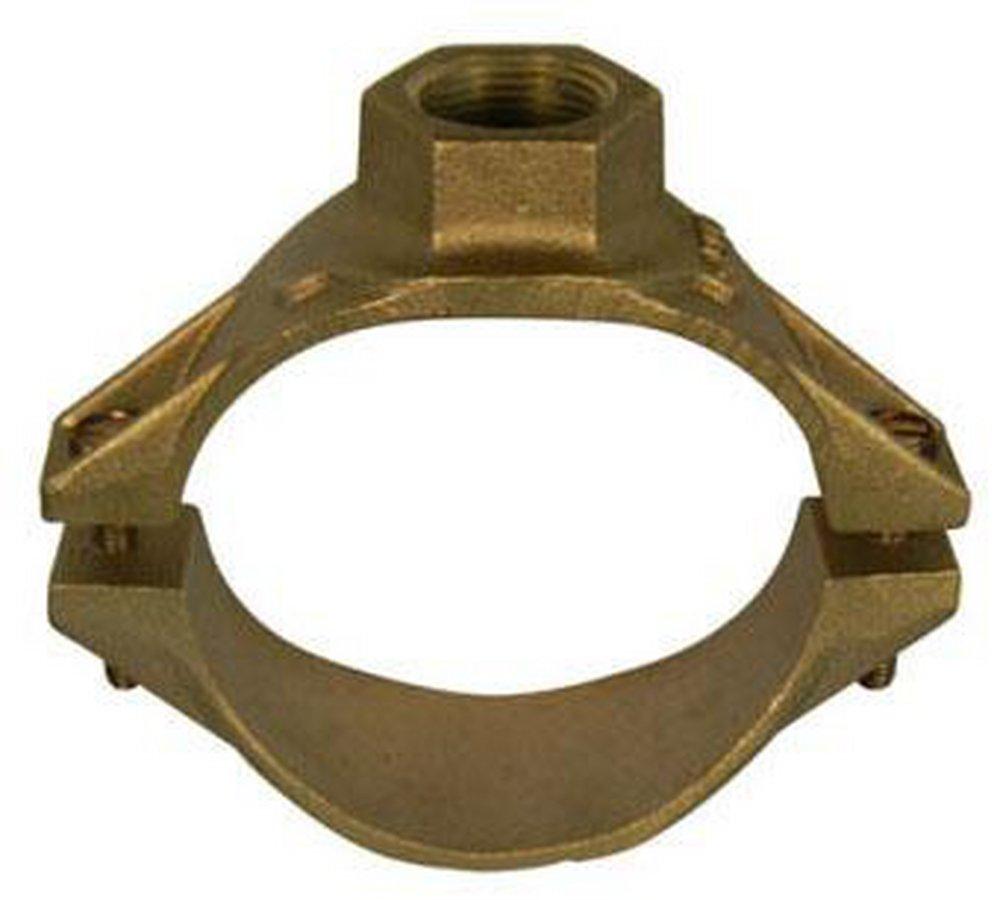

A.Y. McDonald 4128-102 2 x 3/4 in. IP Brass Saddle M3802KF

Product Description

The A.Y. McDonald 4128-102 is a two-piece bolted hinged service saddle designed to provide a secure fit for plumbing applications. This saddle is ideal for connecting pipes and offers a nominal size of two by three-fourths inches. The outlet features large wrench flats for easy installation and maintenance.

• Compatible with Schedule 40 and Schedule 80 PVC piping.
• Constructed with a silicon bronze bolt for durability.
• Rated for a pressure of two hundred psig.

Product Highlights

This service saddle ensures a reliable connection for various plumbing tasks while adhering to ANSI/AWWA C800 standards.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• Connection Type: FNPT

Technical Specifications

• Bolt Material: Silicon Bronze
• Bolt Size: 5/16-18 UNC-2A x 2 inches long
• Clamp Material: Cast Brass
• Dimensions: 2-3/8 inches ID
• Gasket Material: EPDM
• Nominal Size: 2 x 3/4 inches
• Pressure Rating: 200 psig
• Schedule Rating: SCH 40/STD or SCH 80/XH
• Type: 2-piece bolted hinged
