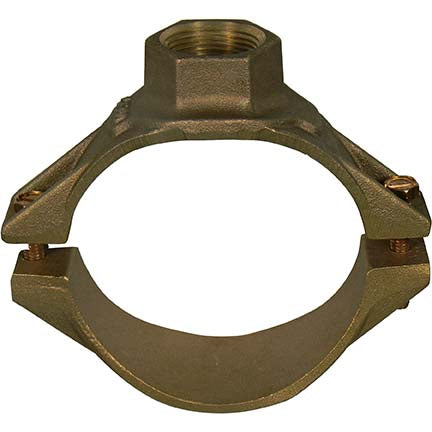

A Y McDonald 4128-101 3801 2X1 Saddle 2 Bolt 2.38 X AWWA

Product Description

The A Y McDonald 4128-101 is a service saddle designed for plumbing applications. This saddle is constructed with a two-piece bolted hinged design. It fits nominal sizes of two by one inches. The saddle utilizes AWWA taper threads and is compatible with schedule 40/standard or schedule 80/extra heavy pipes. The pressure rating is two hundred psig.

• Includes silicon bronze bolts and a cast brass clamp.
• Contains an EPDM gasket for secure sealing.
• Features outlet boss with large wrench flats for easy installation.

Product Highlights

This saddle effectively connects to pipes with a stable and durable design. It is suitable for high pressure and has identifiable tap sizes and thread types.

Product Information

Standard Information

• Manufacturer: A Y McDonald MFG CO
• UPC: 053565034089

Technical Specifications

• Bolt Material: Silicon Bronze
• Bolt Size: 5/16-18 UNC-2A x 2 in L
• Clamp Material: Cast Brass
• Connection Type: AWWA Taper Thread
• Dimensions: 2.2 in W
• Gasket Material: EPDM
• Nominal Size: 2 x 1 in
• Pressure Rating: 200 psig
• Schedule Rating: SCH 40/STD or SCH 80/XH
• Type: 2-Piece Bolted Hinged
