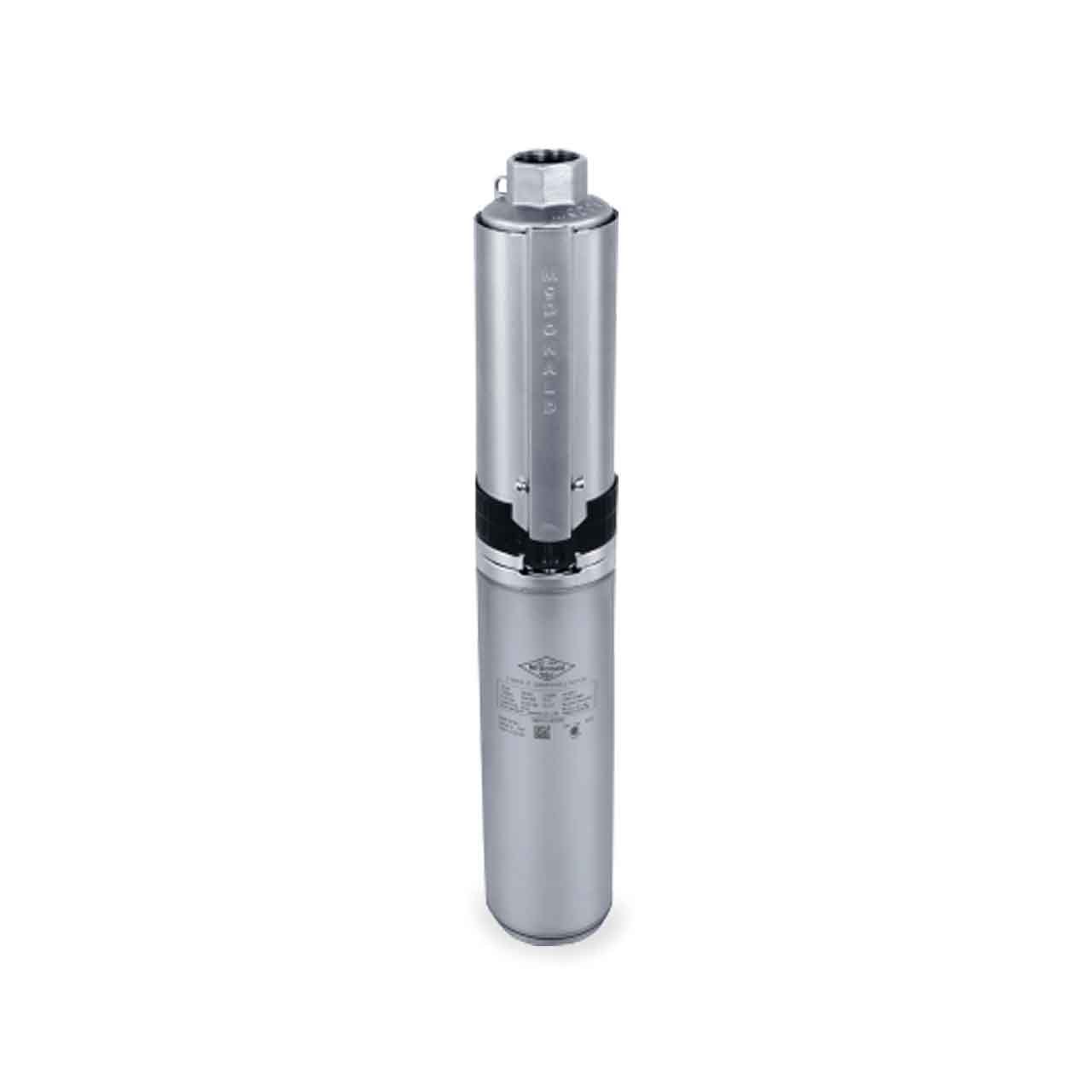

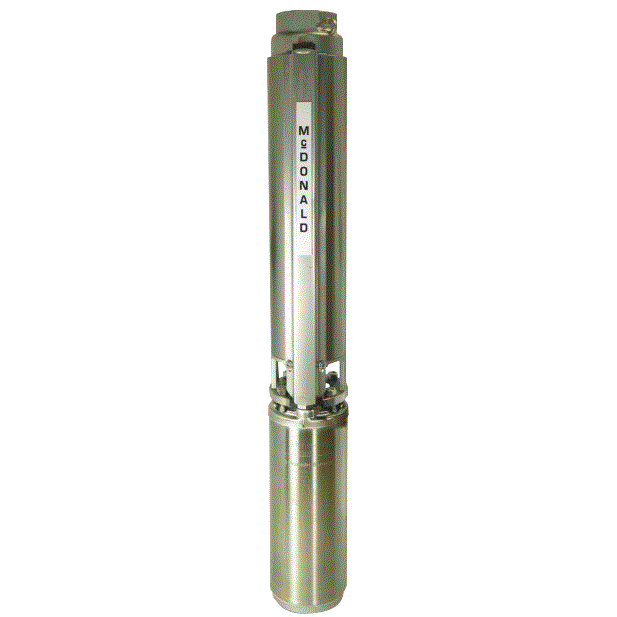

A.Y. McDonald 24050V2 Stainless Steel Pump & Motor 7 GPM 0.5 HP 230V

Product Description

The A.Y. McDonald 24050V2 is a stainless steel submersible pump designed to pump within the 7 GPM range. This 0.5 HP, 230V, 2-wire single-phase pump is part of the 24000 Series, offering peak capacity performance. It is suitable for residential and commercial deep well pumping applications, reservoirs, and treatment system dosing.

• Powered by NEMA Approved A.Y. McDonald Stainless Steel Motor
• Single Phase Motors Include Built-In Lightning Protection
• 300 Series Stainless Steel Corrosion Resistant Discharge, Easy Wrench Design, Built in Safety Eye, Threads Into Shell

Product Highlights

This A.Y. McDonald submersible pump features a stainless steel construction, built-in check valve, and durable polycarbonate diffuser for efficient performance and sand handling.

Product Information

Standard Information

• Brand: A Y MCDONALD
• Manufacturer Part Number: 24050V2

Technical Specifications

• BODY CONSTRUCTION: 304 Stainless Steel
• HORSEPOWER: 0.5 HP
• CABLE LENGTH: 5-1/2 ft.
• VOLTAGE: 230V
• RPM: 3450
• SERVICE FACTOR: 1.6
• MAX AMBIENT TEMPERATURE: 95°F/35°C
• FULL LOAD AMPS: 3.9
• FLANGE: NEMA 4"
• MAX OPERATING DEPTH: 984 ft
• MOTOR TYPE: 2-wire
• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 7 GPM
• MAXIMUM CAPACITY: 16.5 GPM
• MAXIMUM HEAD: 305’
• STAGES: 9
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Glass Bead Acetal
• BODY MATERIAL: 300 Series Stainless Steel
• Mfg. Number: 6630-254
• Model Number: 24050V2
• Series: 24000 V
• Product Type: Submersible well pump
• Application: Water systems
• Phase: 1
• Minimum Well Size: 4"
• Discharge Connection: 1-1/4" NPT
• Best Efficency Flow: 7 gpm
• Flow at 25 ft (30 psi): 12.4 gpm
• Flow at 50 ft (30 psi): 11.4 gpm
• Flow at 75 ft (30 psi): 10.4 gpm
• Flow at 100 ft (30 psi): 9.3 gpm
• Flow at 125 ft (30 psi): 8.1 gpm
• Flow at 150 ft (30 psi): 6.7 gpm
• Flow at 175 ft (30 psi): 5.2 gpm
• Flow at 200 ft (30 psi): 3.5 gpm
• Flow at 225 ft (30 psi): 1.1 gpm
• Pump Casing: Stainless steel
• Impeller: Noryl
• Check Valve: Included
• Motor: Included
• Outlet Size: 1-1/4 in. NPT
