A.Y. 5133-154 CURB STOP BALL 3/4IN -22 CTS COMPRESSION

Product Description

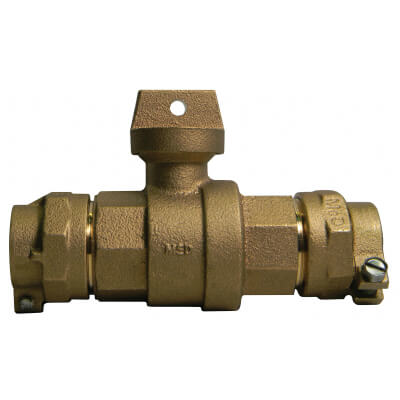

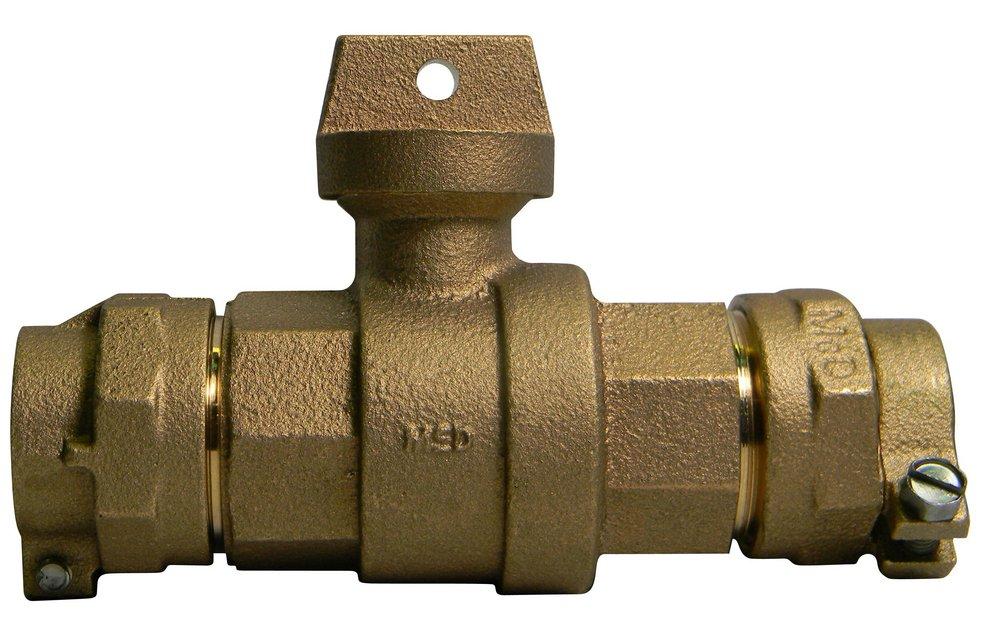

A.Y. McDonald 5133-154 Curb Stop Ball has a nominal size of three quarters of an inch. It features -22 CTS compression end style and a body made from brass. This product is suitable for water media and has a pressure rating of 300 psi. The curb stop is designed to provide reliable shut-off capabilities in water systems.

• PTFE coated brass ball for durability
• Blow-out proof EPDM port seals
• End joint sealed with EPDM O-Ring

Product Highlights

This A.Y. McDonald curb stop features positive shut-off from either direction and is compatible with various end connections. The valve offers low operating torque and a bubble-tight seal under pressure.

Product Information

Standard Information

• Manufacturer: A.Y. McDonald
• UPC: 053565385495

Technical Specifications

• Ball Material: Brass
• Body Material: Brass
• Nominal Size: 3/4 in
• Series: 76100-22
• Softgoods Material: EPDM
• Media: Water
• Pressure Rating: 300 psi
• Top to Inlet Center: 2.42 in
