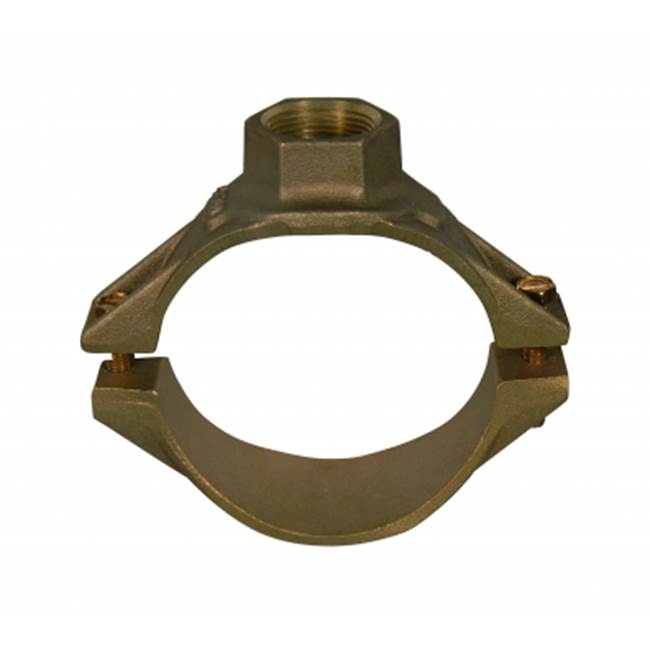

A.Y. 4128-116 3801 6X3/4 Saddle 2-Bolt IPS PVC x AWWA Connection

Product Description

A.Y. McDonald’s 4128-116 is a 2-piece service saddle designed for PVC pipe applications with a nominal size of six by three-quarters inches. This saddle enables secure and stable connections for IPS PVC x AWWA/CC connections. It features a cast brass clamp and is rated for a maximum pressure of two hundred psig.

• Designed for use with PVC pipe to provide full circle support.
• Includes multiple silicon bronze bolts and an EPDM gasket for durability.
• Suitable for both Schedule 40 and Schedule 80 installations.

Product Highlights

This saddle ensures safe connections without risks of cracking the pipe, providing reliability in plumbing systems.

Product Information

Standard Information

• Brand: A.Y. McDonald
• Manufacturer Part No: 4128-116

Technical Specifications

• Type: 2-Piece
• Nominal Size: 6 x 3/4 in
• Connection Type: IPS PVC x AWWA/CC
• Pressure Rating: 200 psig
• Dimensions: 2.56 in Width
• Bolt Material: Silicon Bronze
• Clamp Material: Cast Brass
• Gasket Material: EPDM
